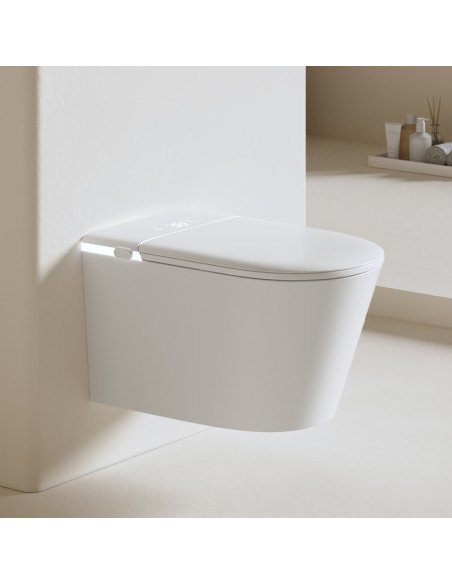

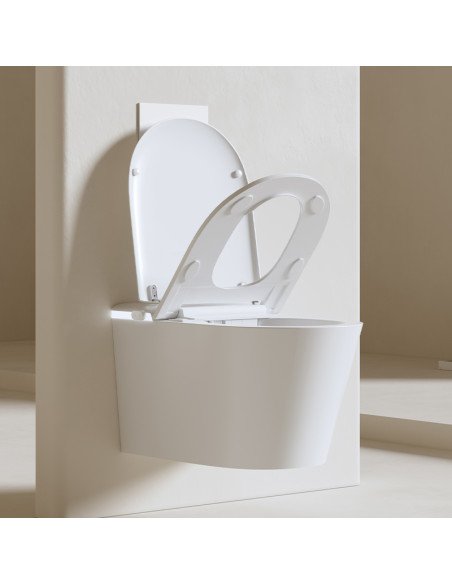

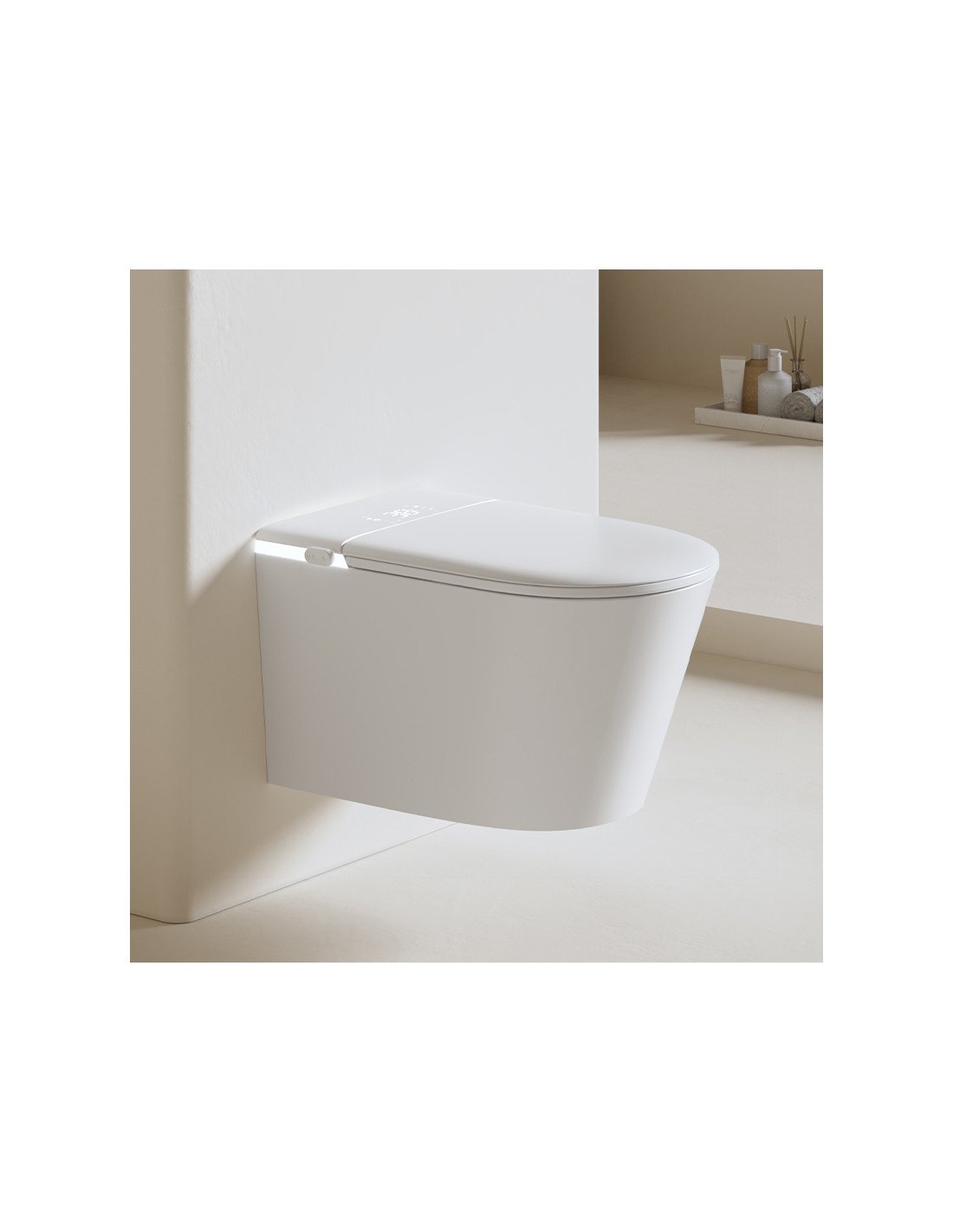

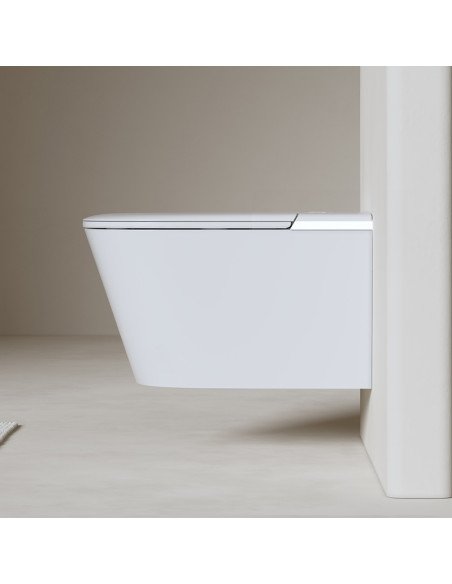

Smart Toilet FIT2 SmartHome 9015 — Wall-Hung, with Heated Seat, Bidet Wash, Warm Air Drying & UV Self-Cleaning

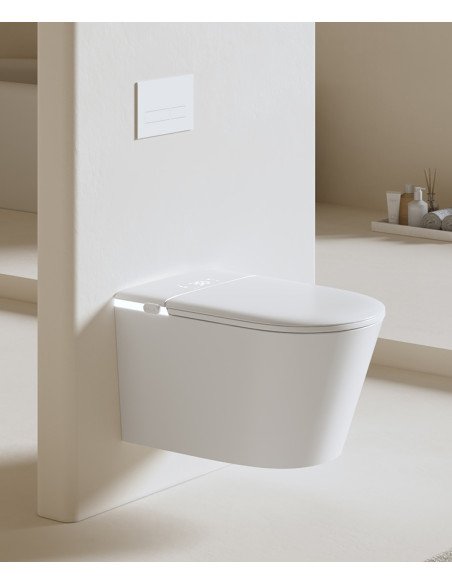

FIT2 SmartHome 9015 is a fully-featured wall-hung smart toilet combining thermostatic wash, heated seat, warm air drying, automatic lid operation and UV nozzle disinfection. Designed for installation onto a concealed in-wall mounting frame (frame sold separately).

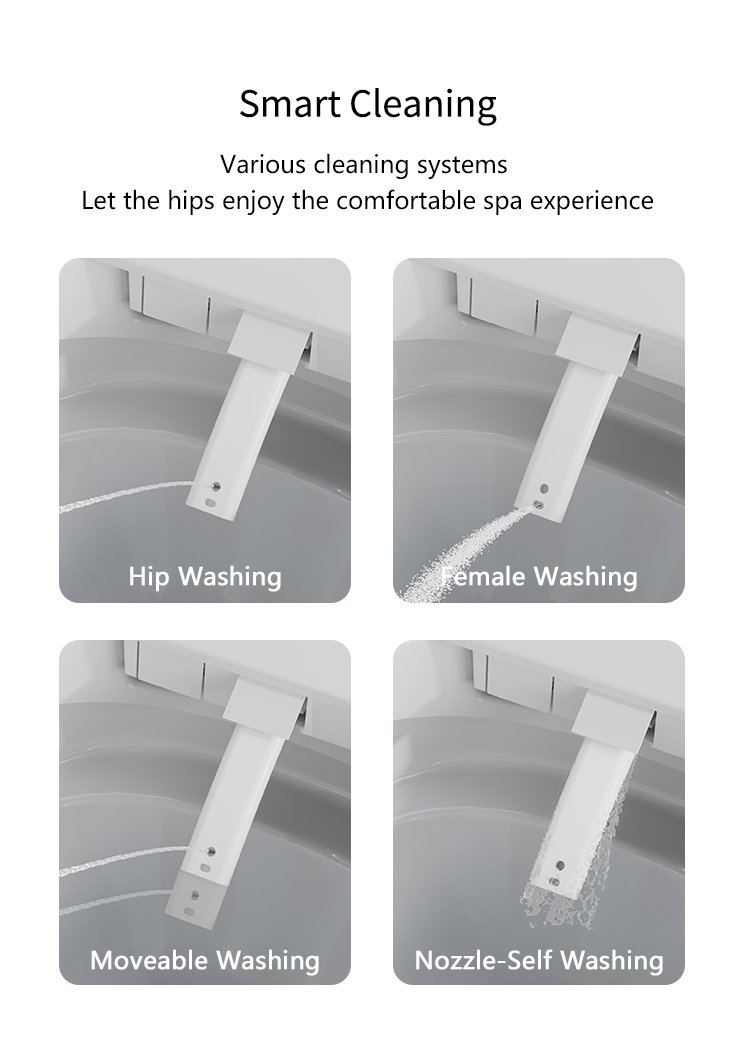

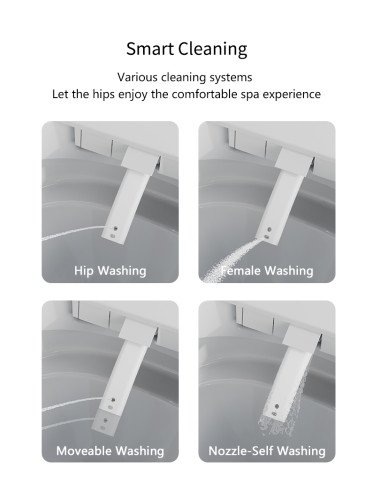

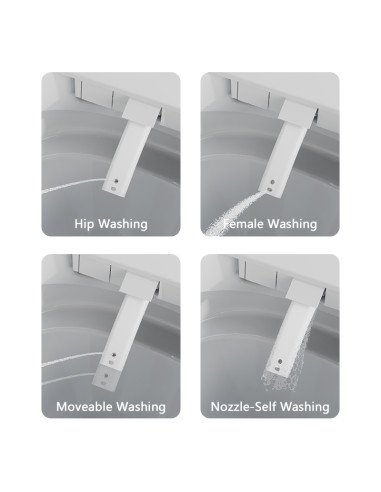

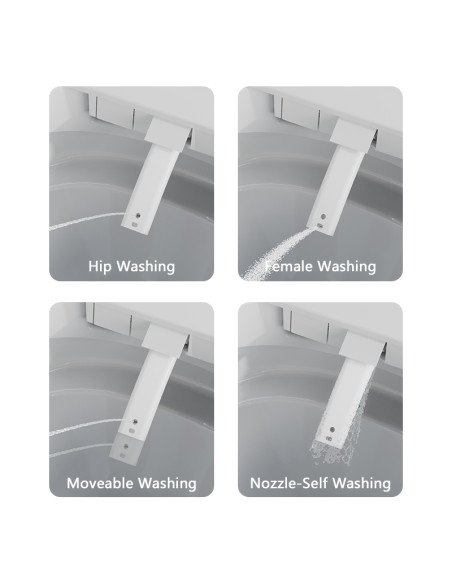

Wash functions

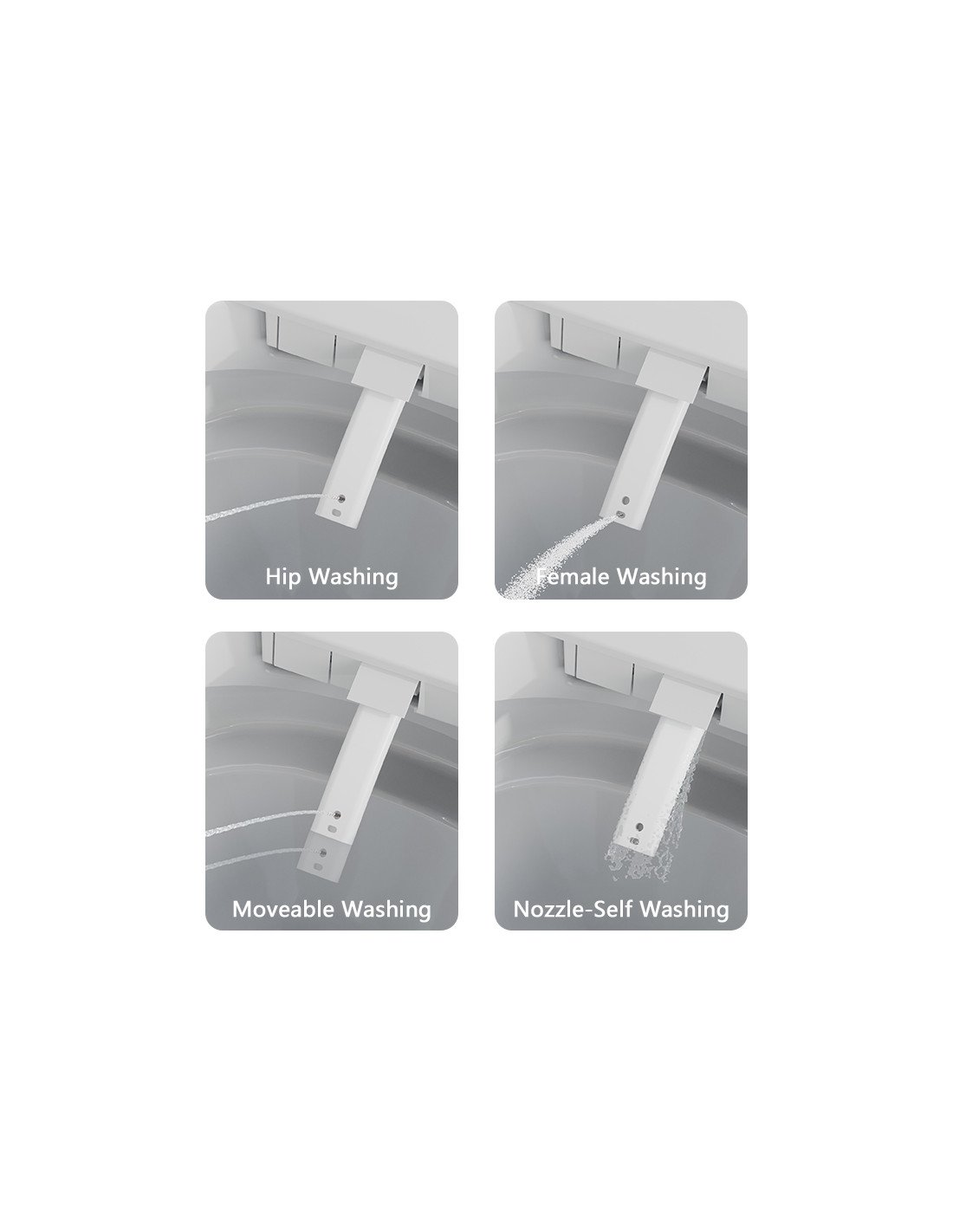

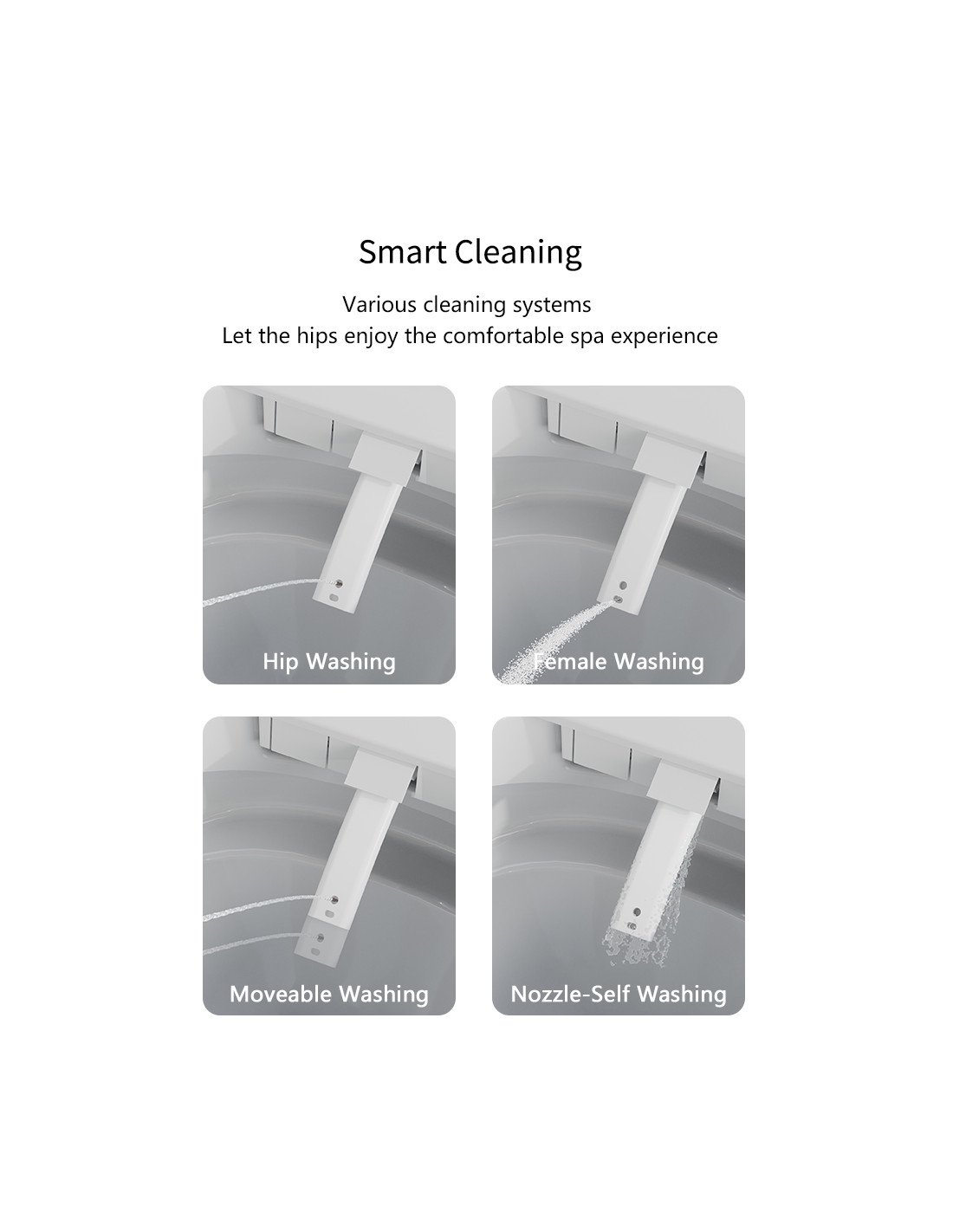

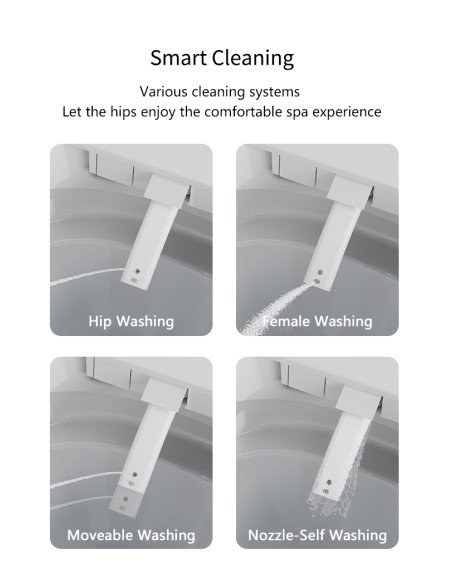

• Rear wash — water flow approx. 0.62 L/min, with oscillating and spiral (all-direction) modes
• Female wash — gentler stream, approx. 0.67 L/min
• Children's mode — reduced flow and adjusted nozzle position
• Adjustable water temperature — 4 levels: 34 °C / 37 °C / 40 °C
• Adjustable water pressure — 5 levels
• Adjustable nozzle position — 5 levels

Seat & comfort

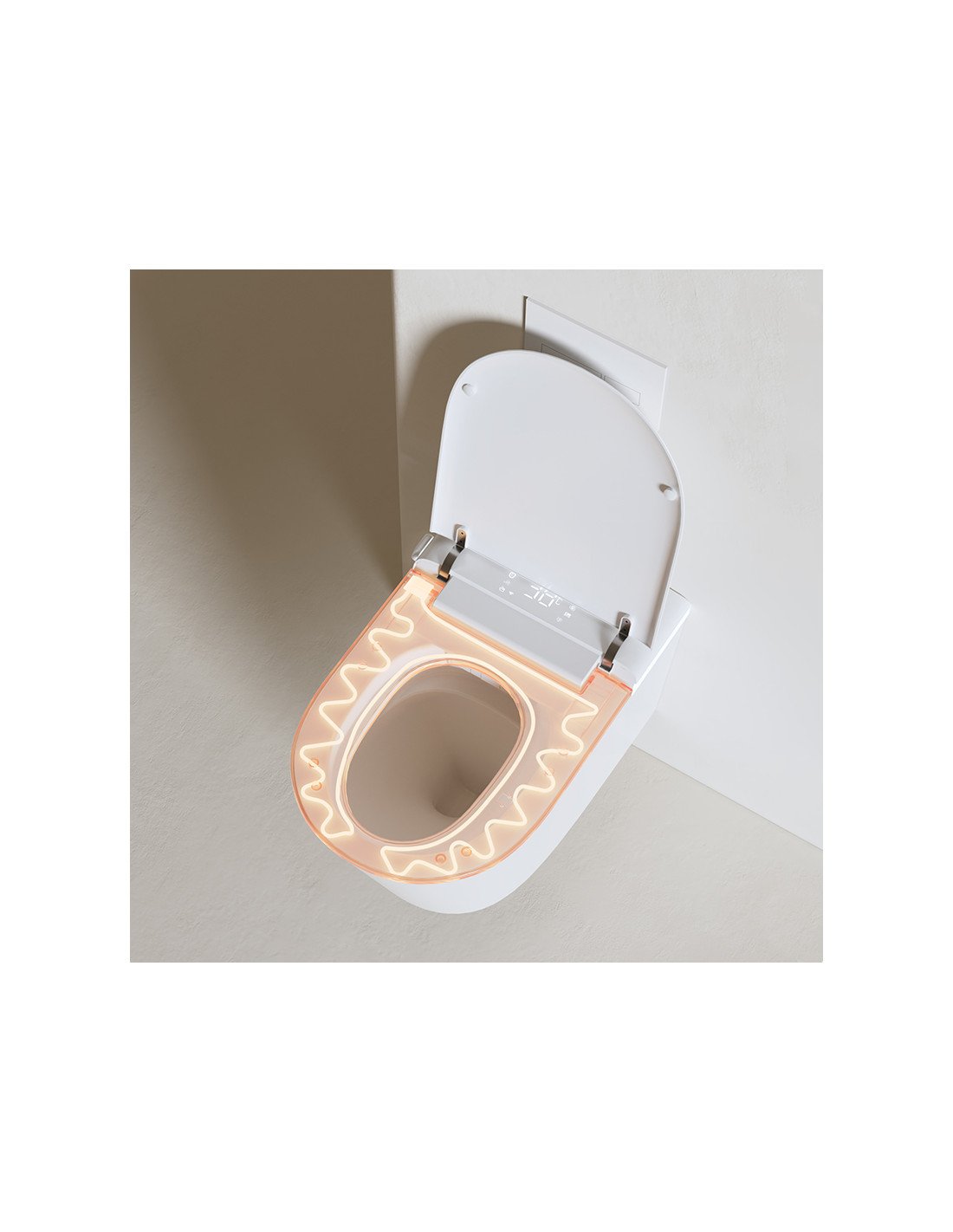

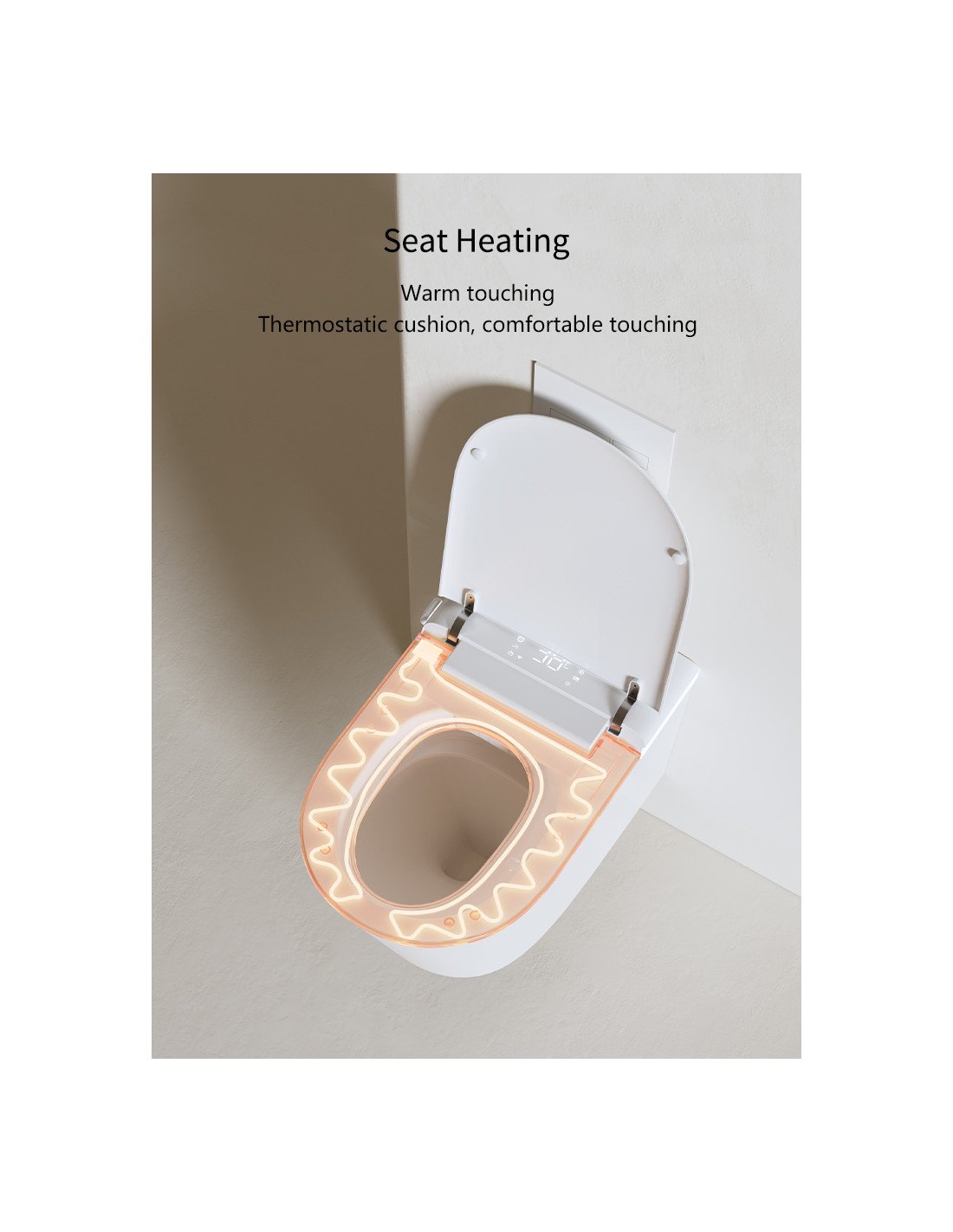

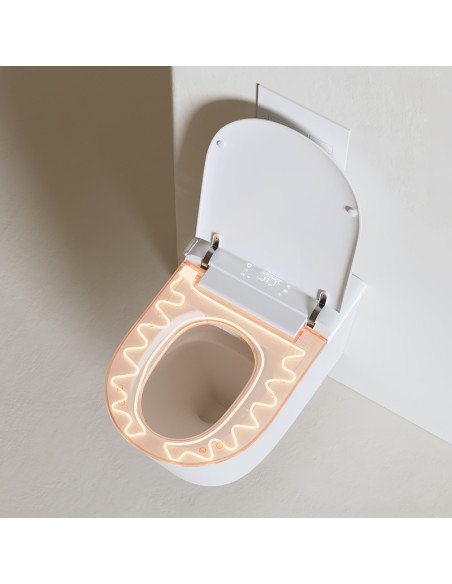

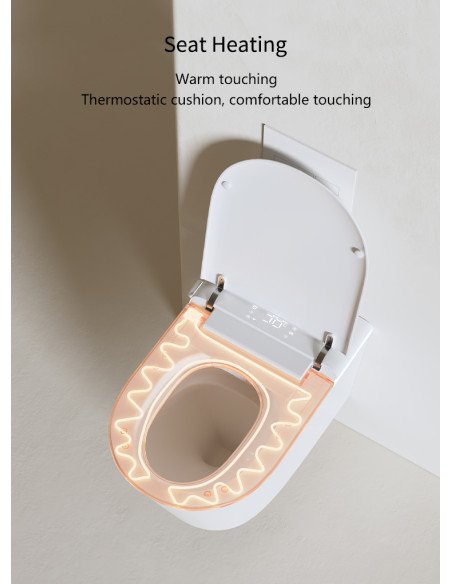

• Heated seat — 4 levels: 34 °C / 37 °C / 40 °C, 45 W

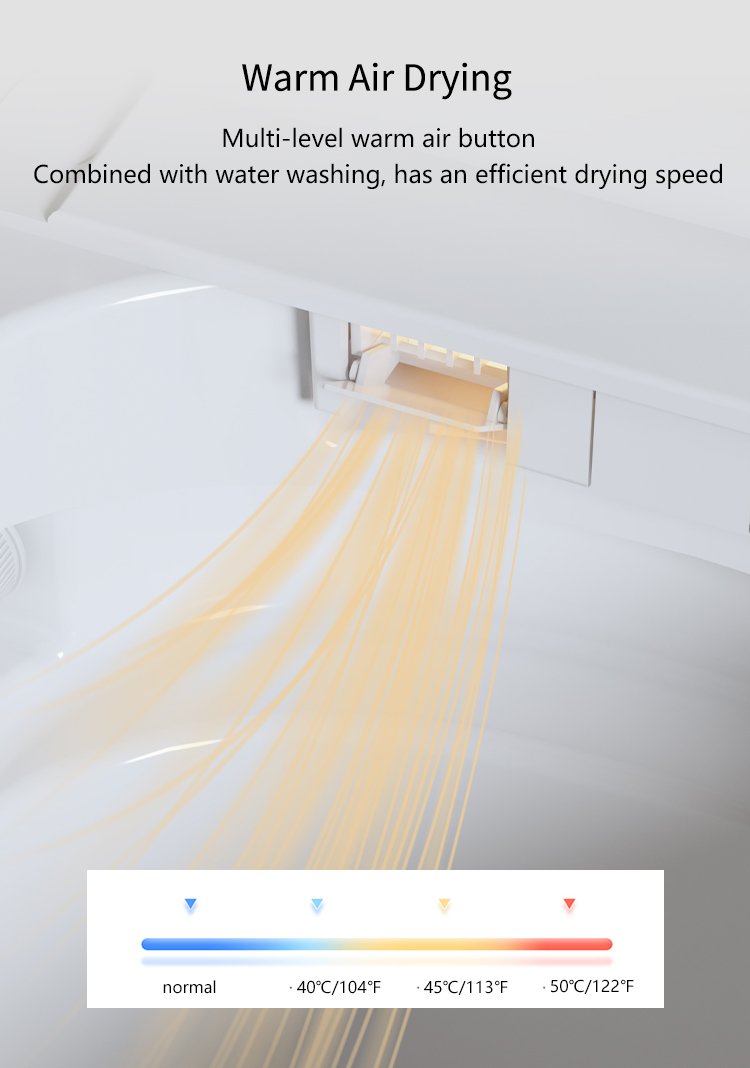

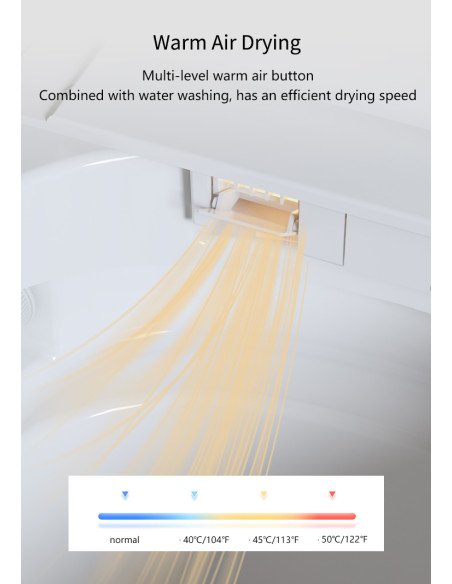

• Warm air drying — 4 levels: 40 °C / 45 °C / 50 °C, 270 W

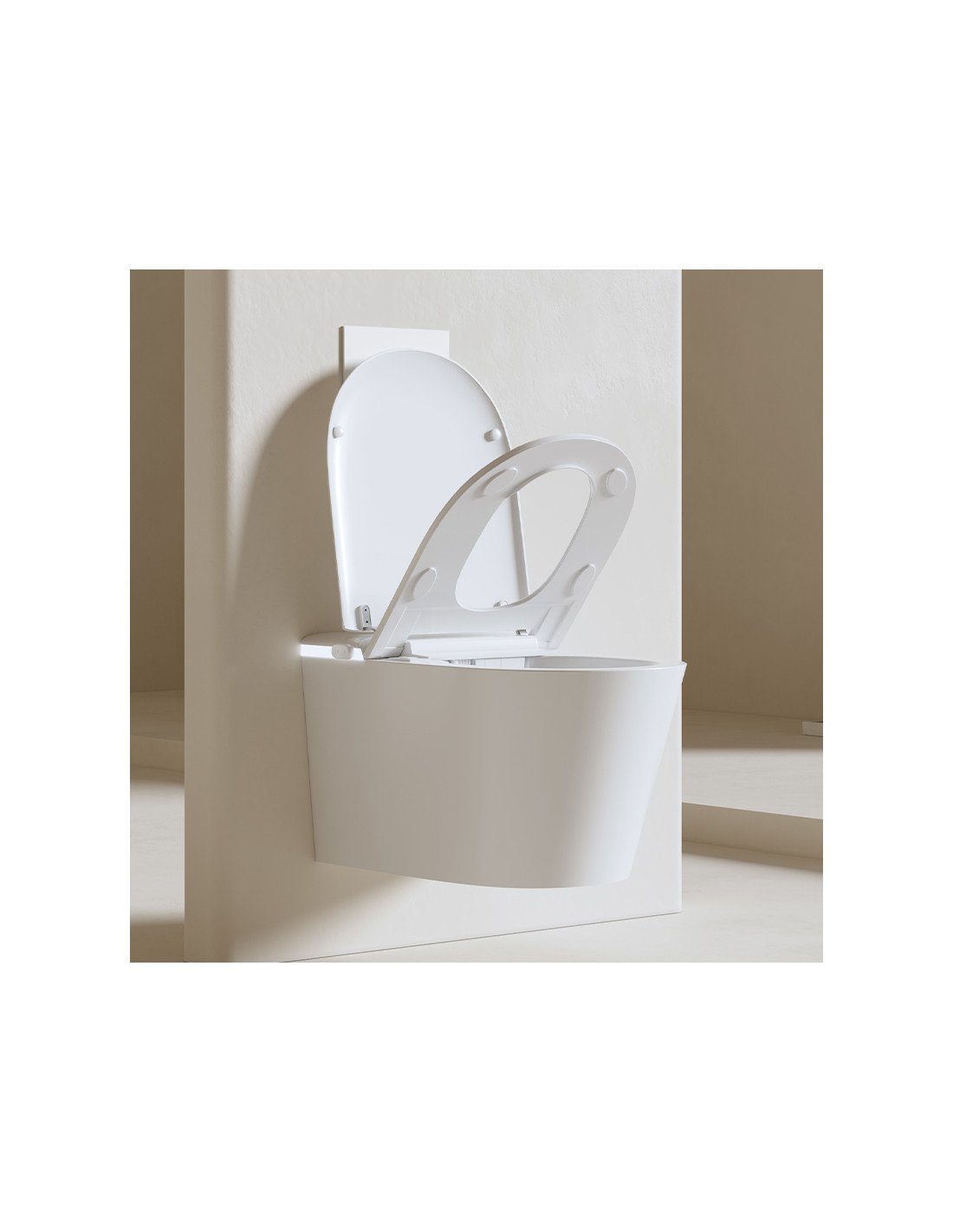

• Automatic lid and seat opening — proximity and foot sensor

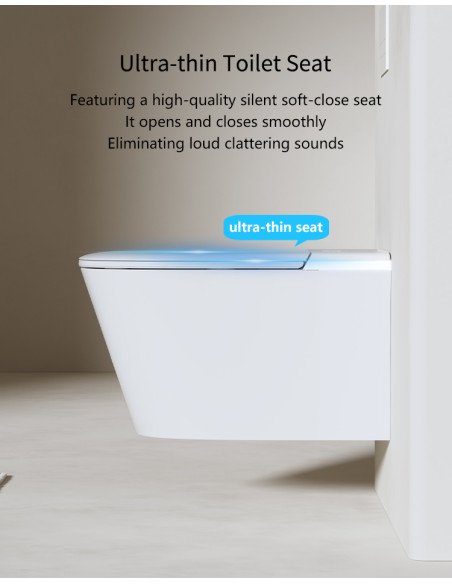

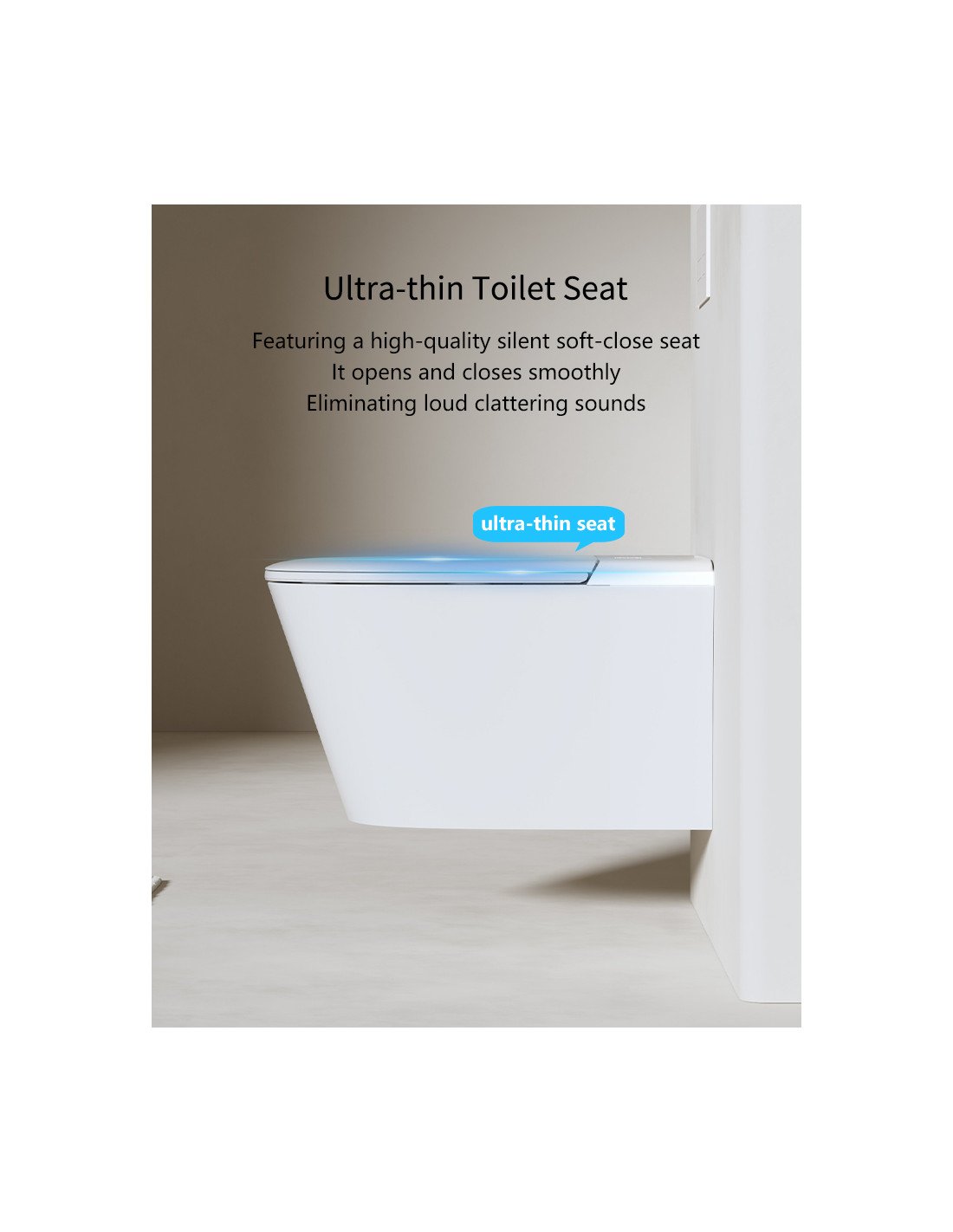

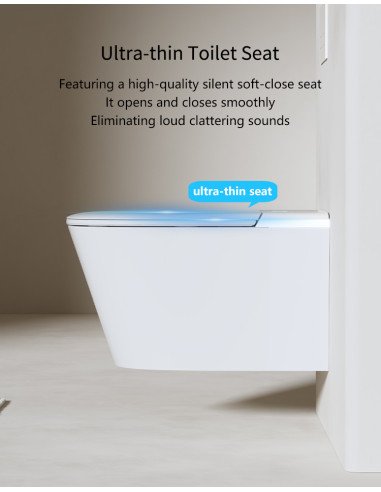

• Soft-close mechanism — silent and safe
• Night light and ambient (atmosphere) light

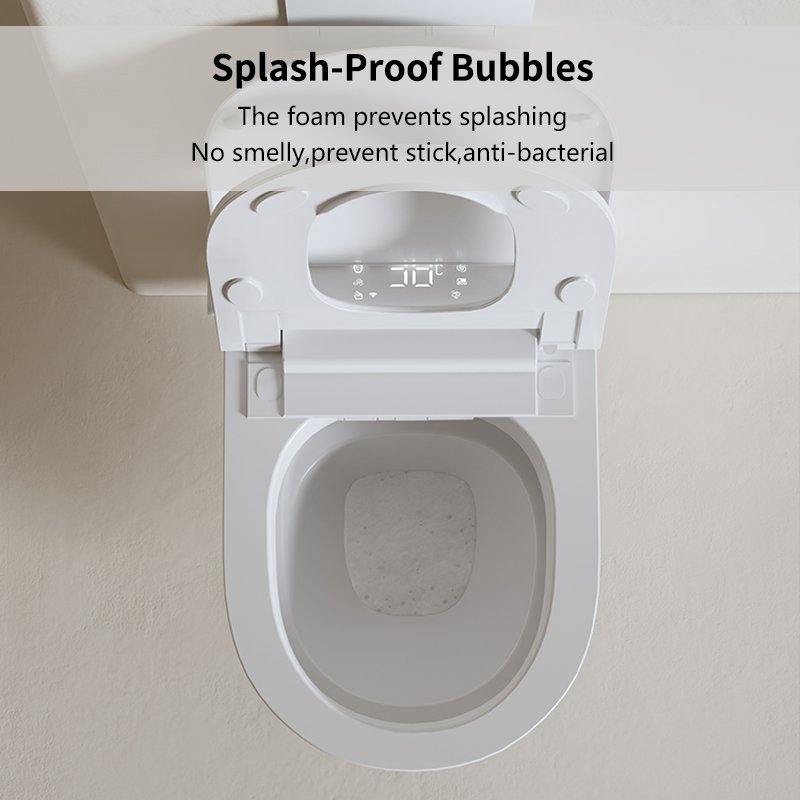

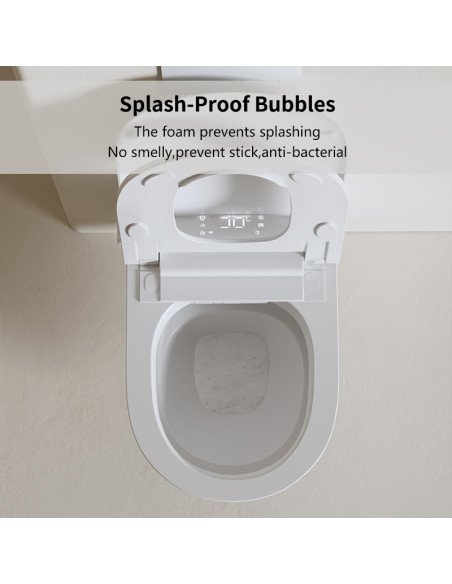

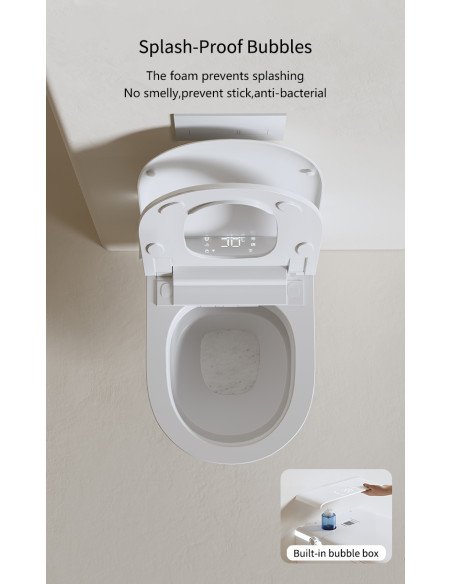

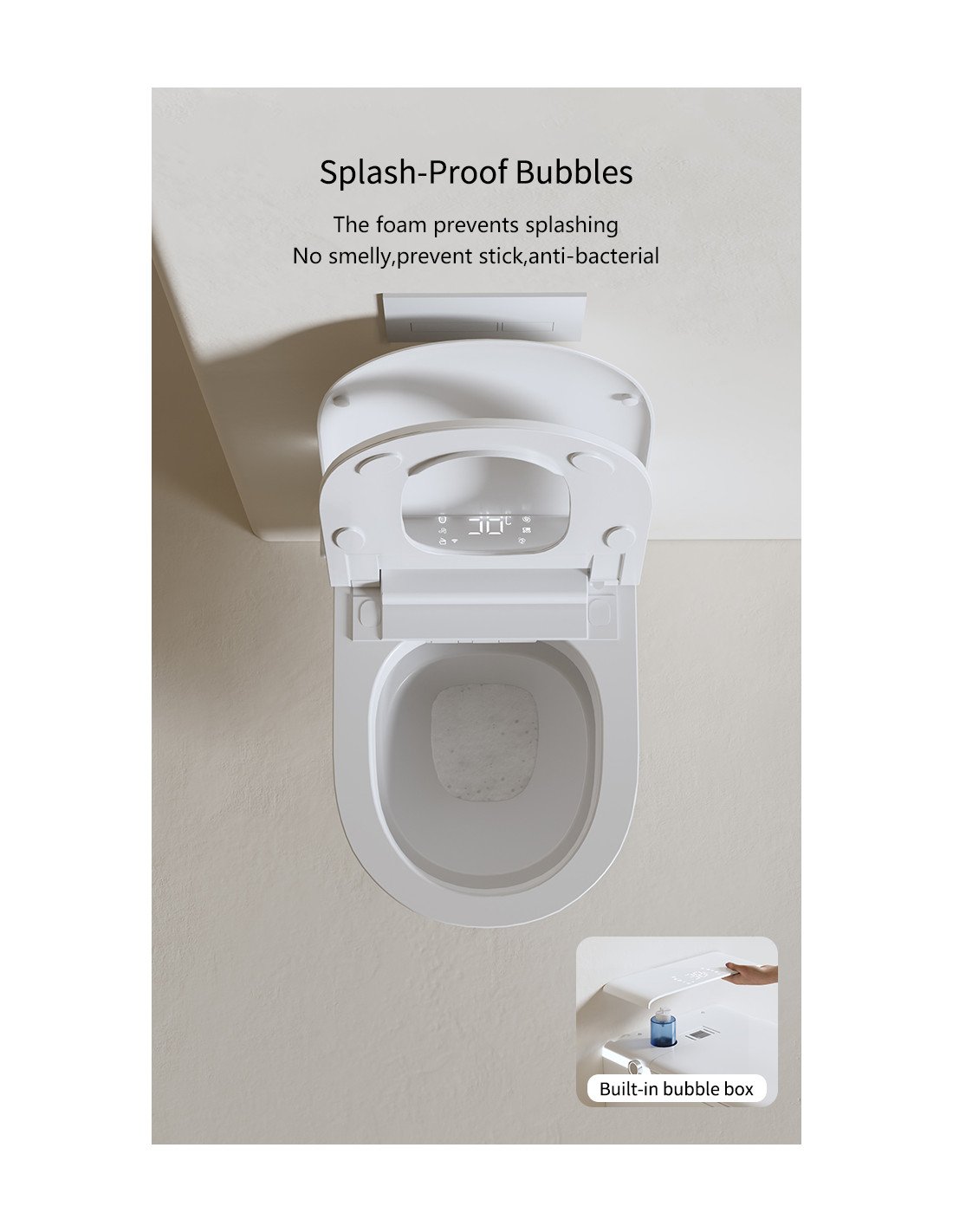

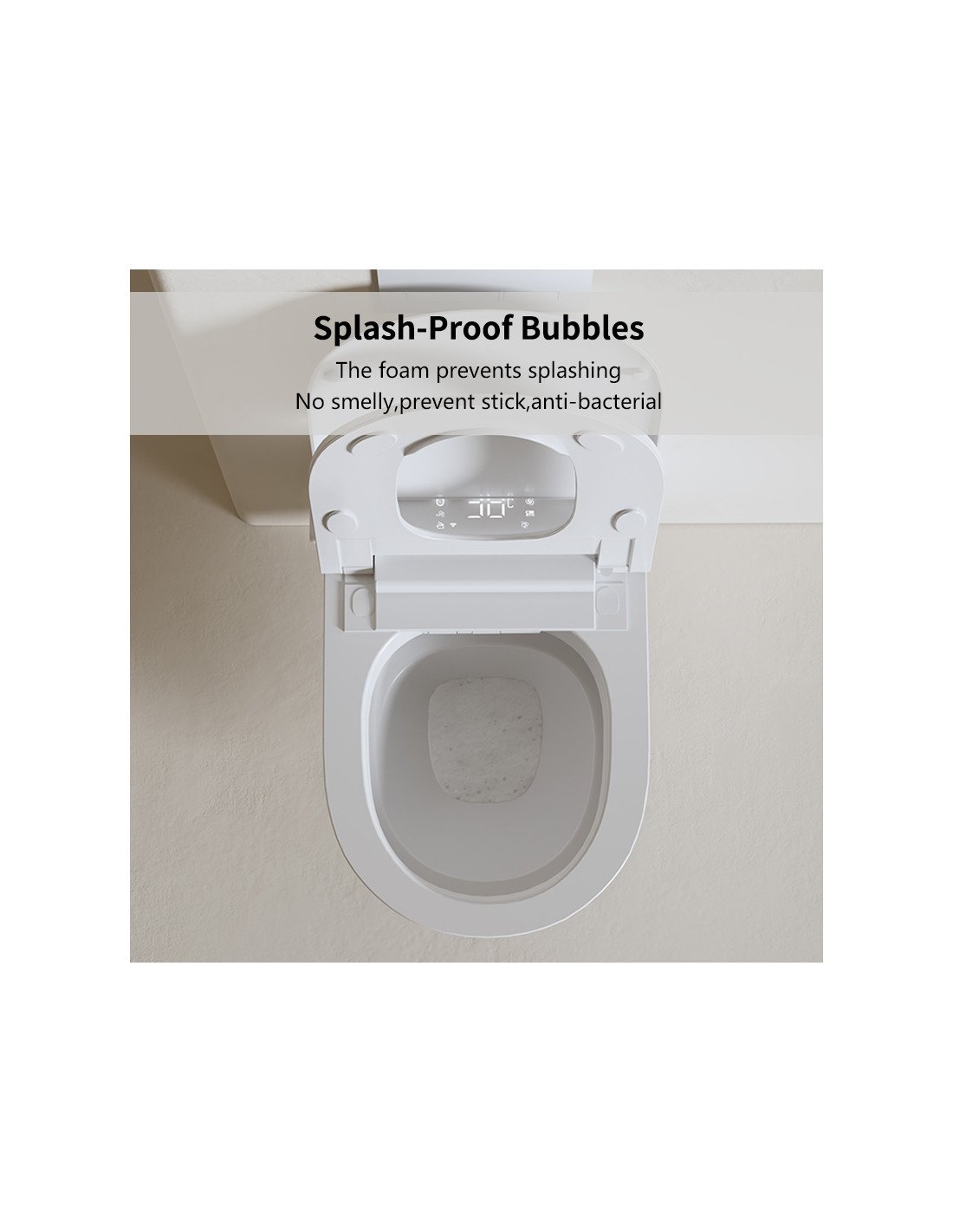

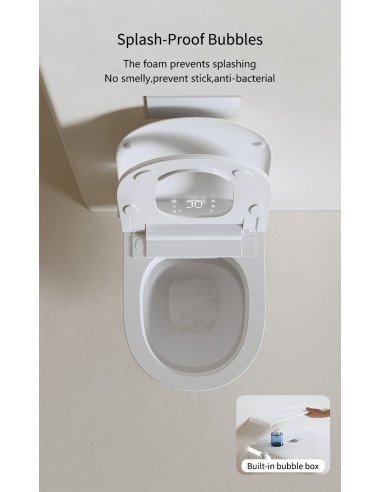

• Foam flush — reduces splashing and odors (foam bottle included with select batches)

Hygiene & maintenance

• UV light — automatic nozzle disinfection after every use
• Self-cleaning nozzle — before and after each wash

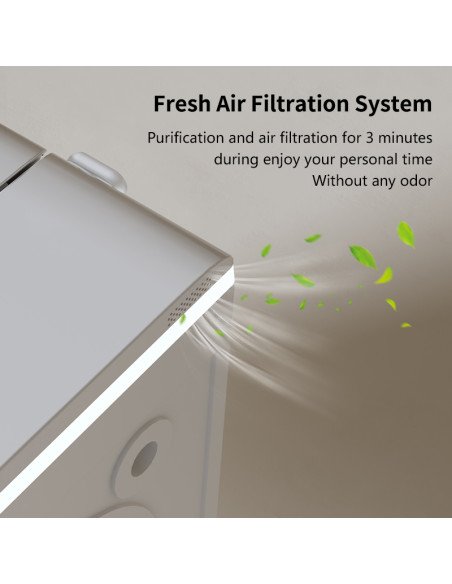

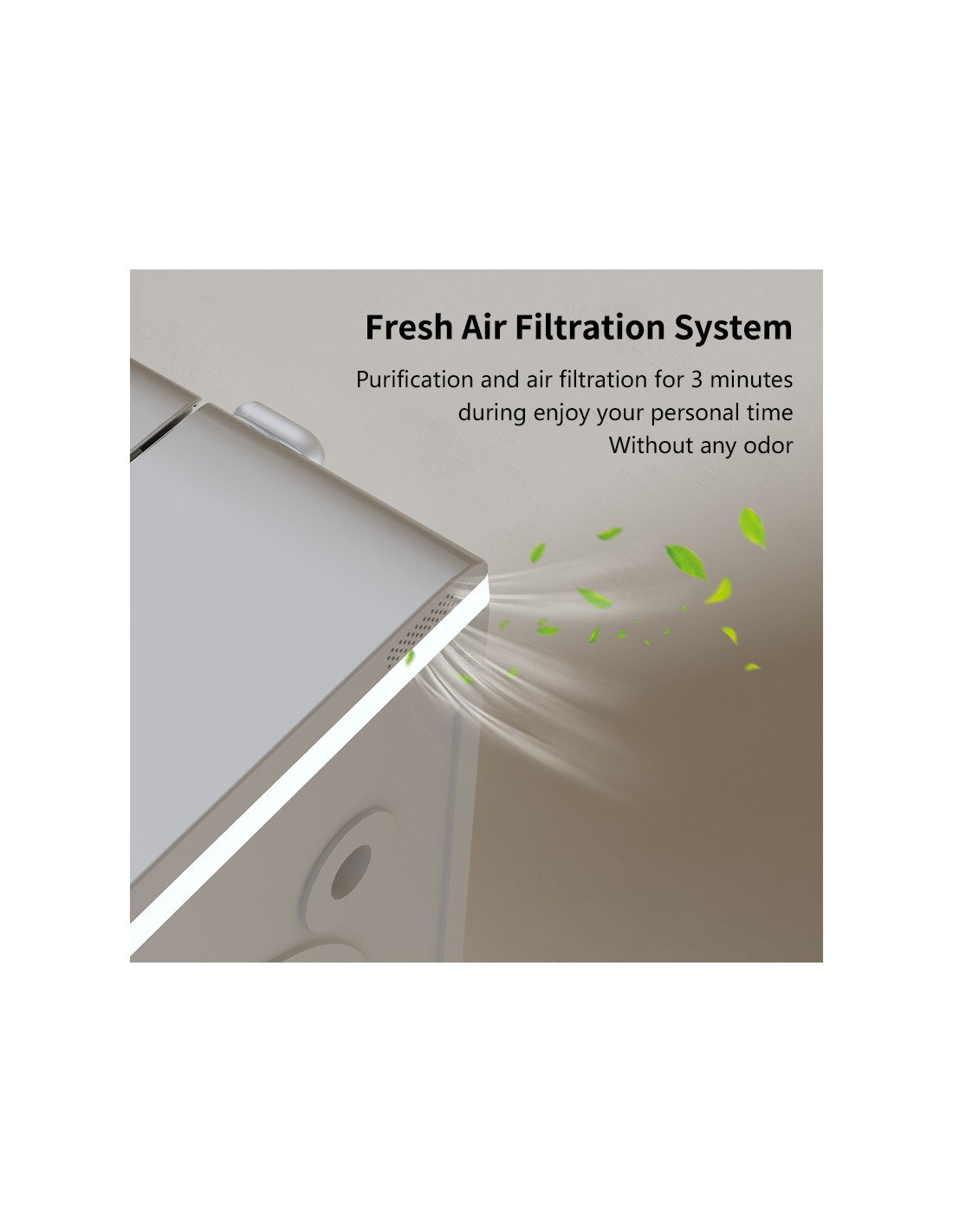

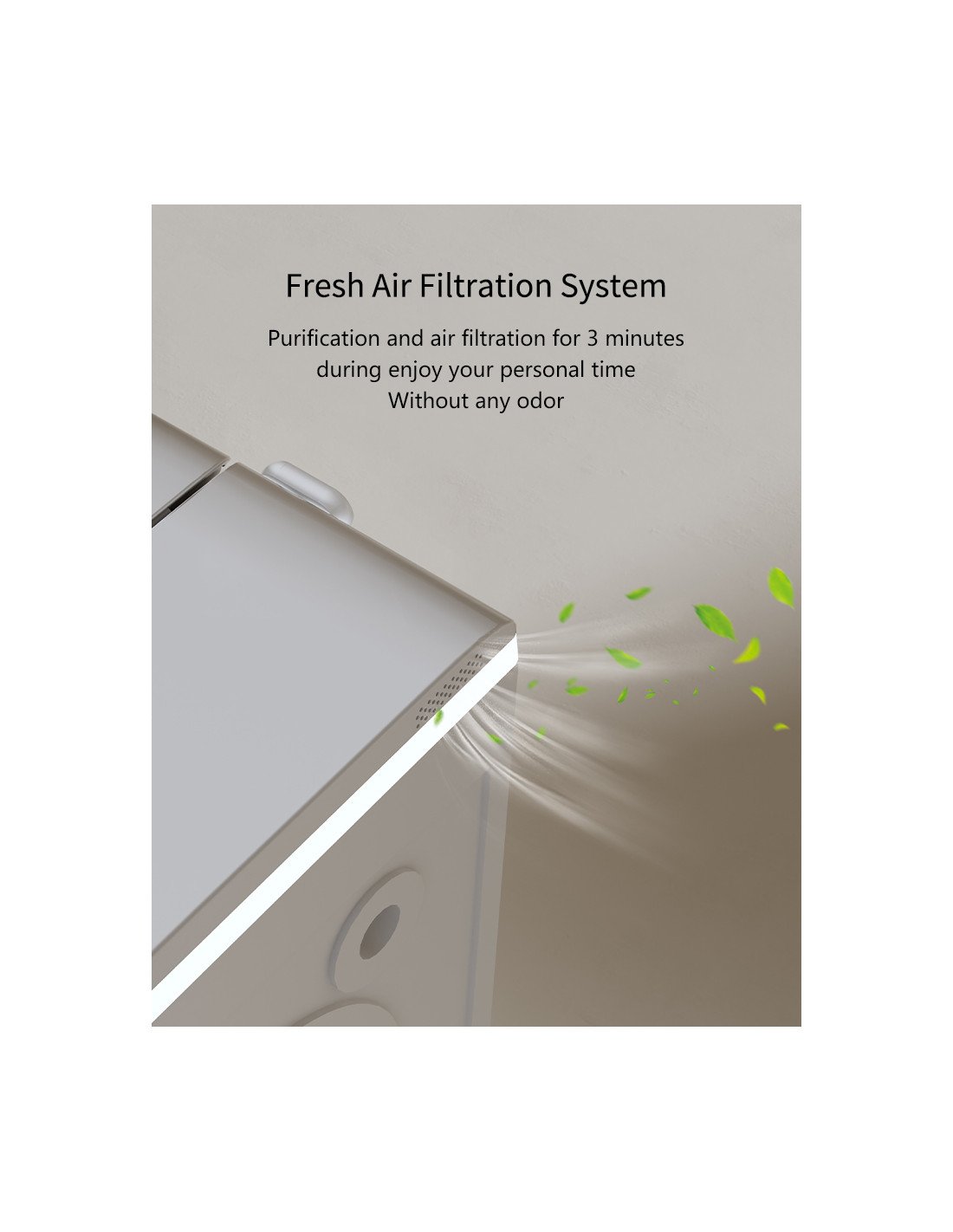

• Automatic deodorization — active filtration while seated
• Jet siphon flushing — efficient and water-saving
• Auto-flush when the lid is closed

Controls

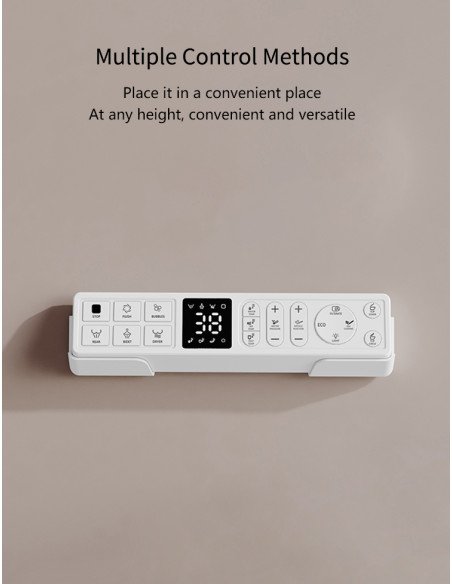

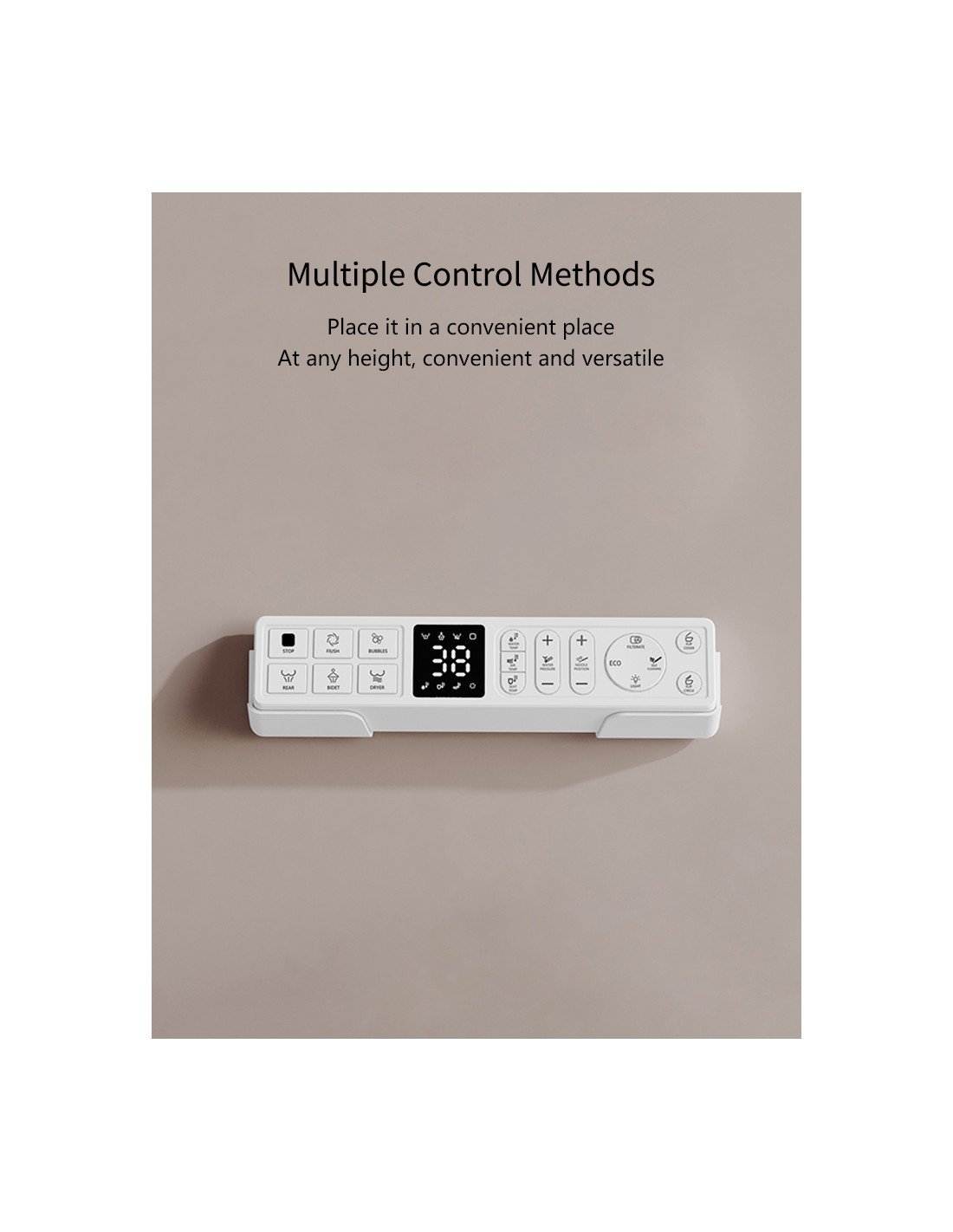

• Wireless remote control with LCD display

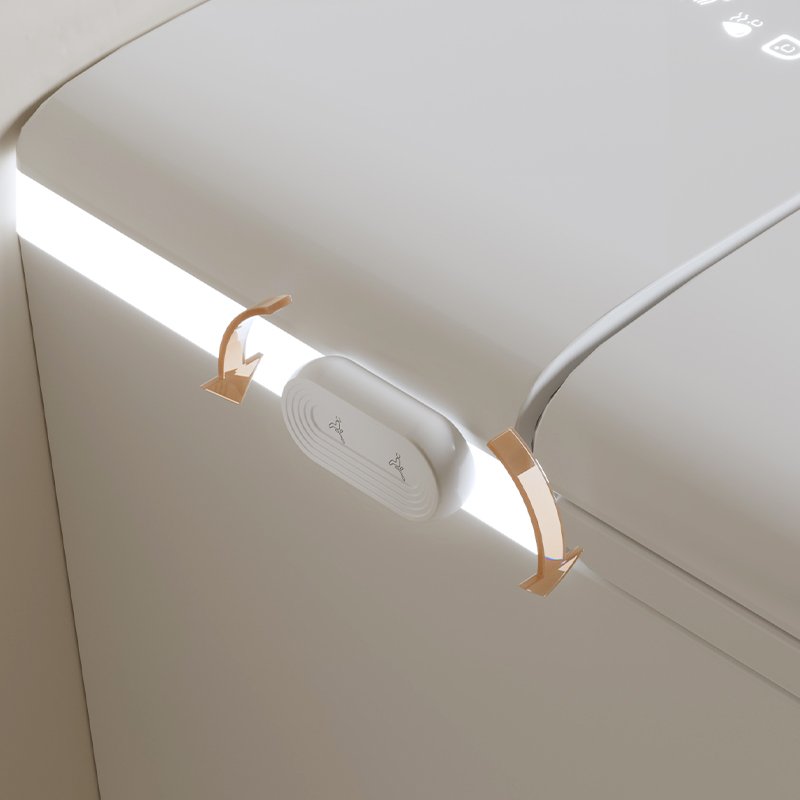

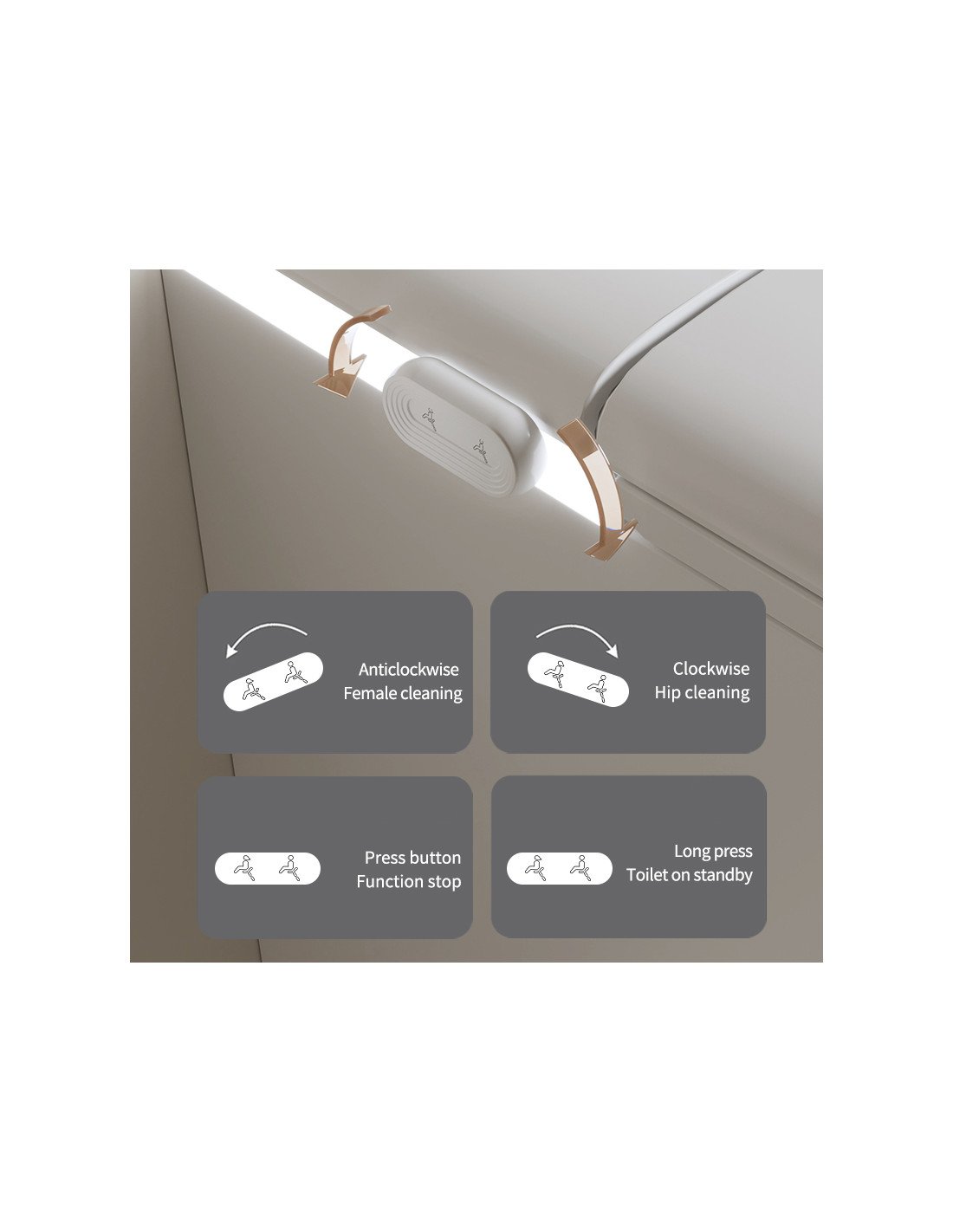

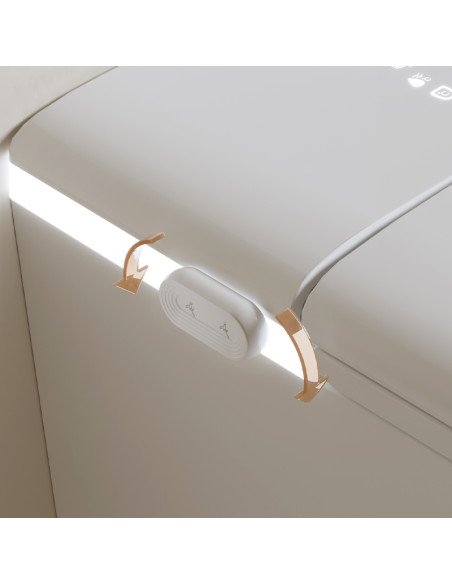

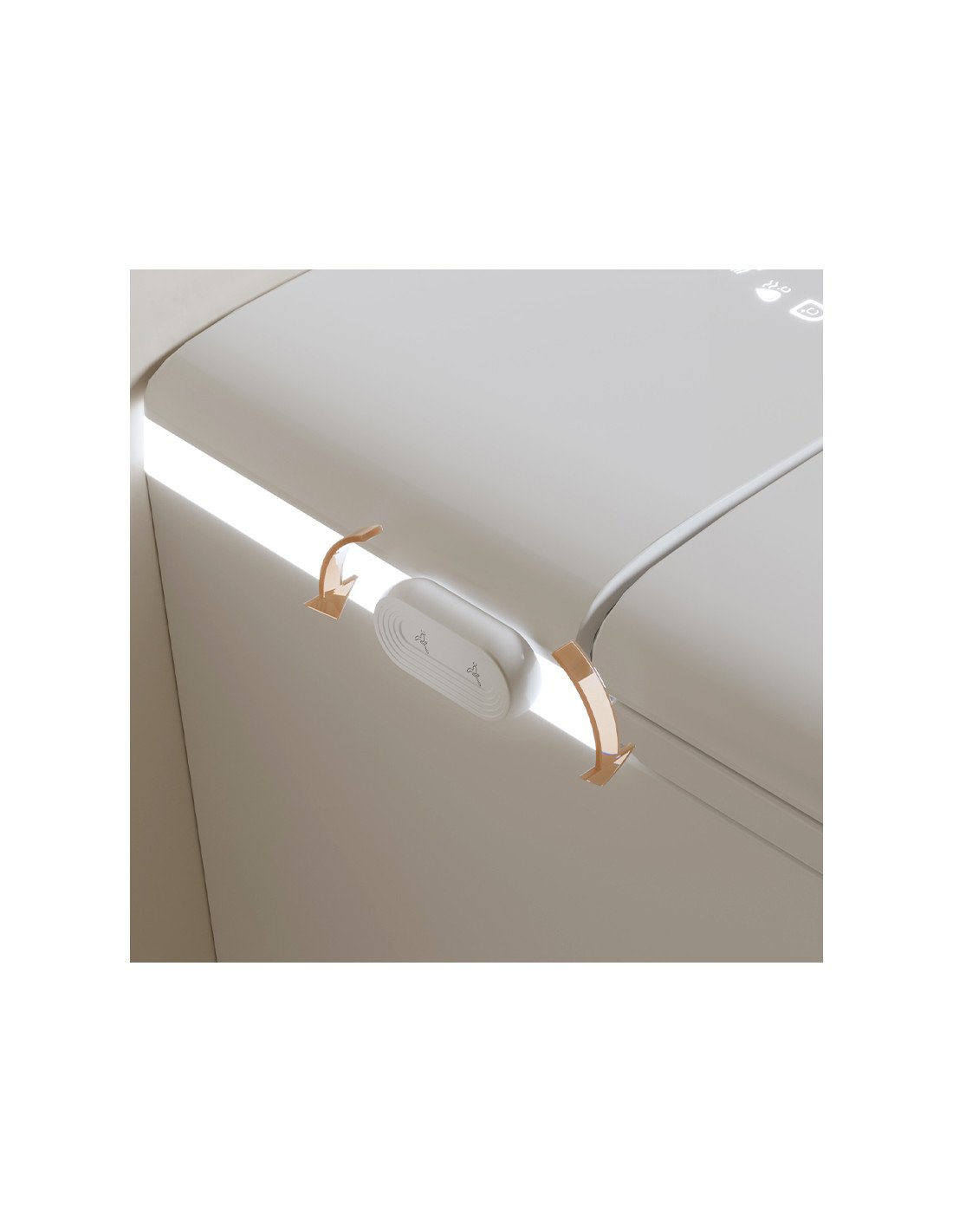

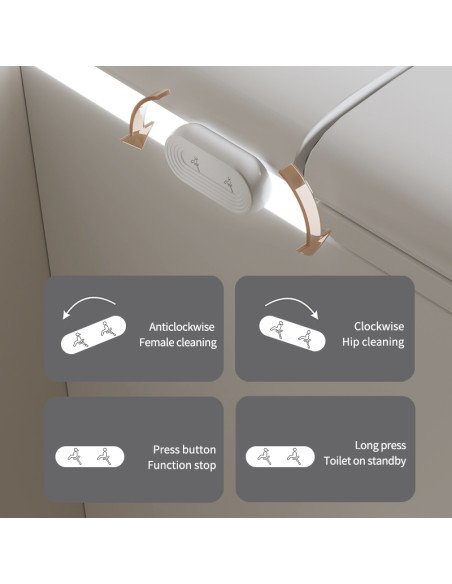

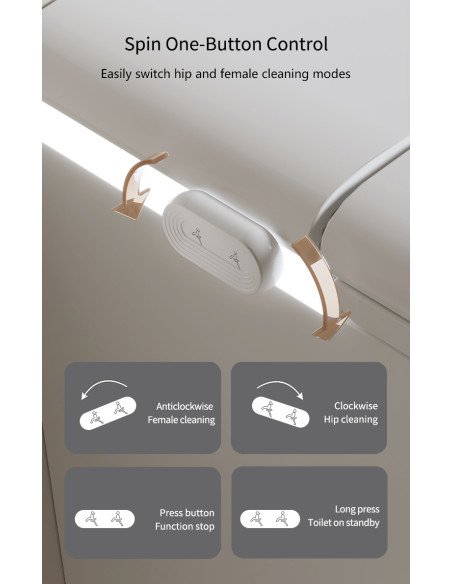

• Smart control knob on the toilet body
• ECO mode for energy saving
• Backup battery — core functions remain available during power outages

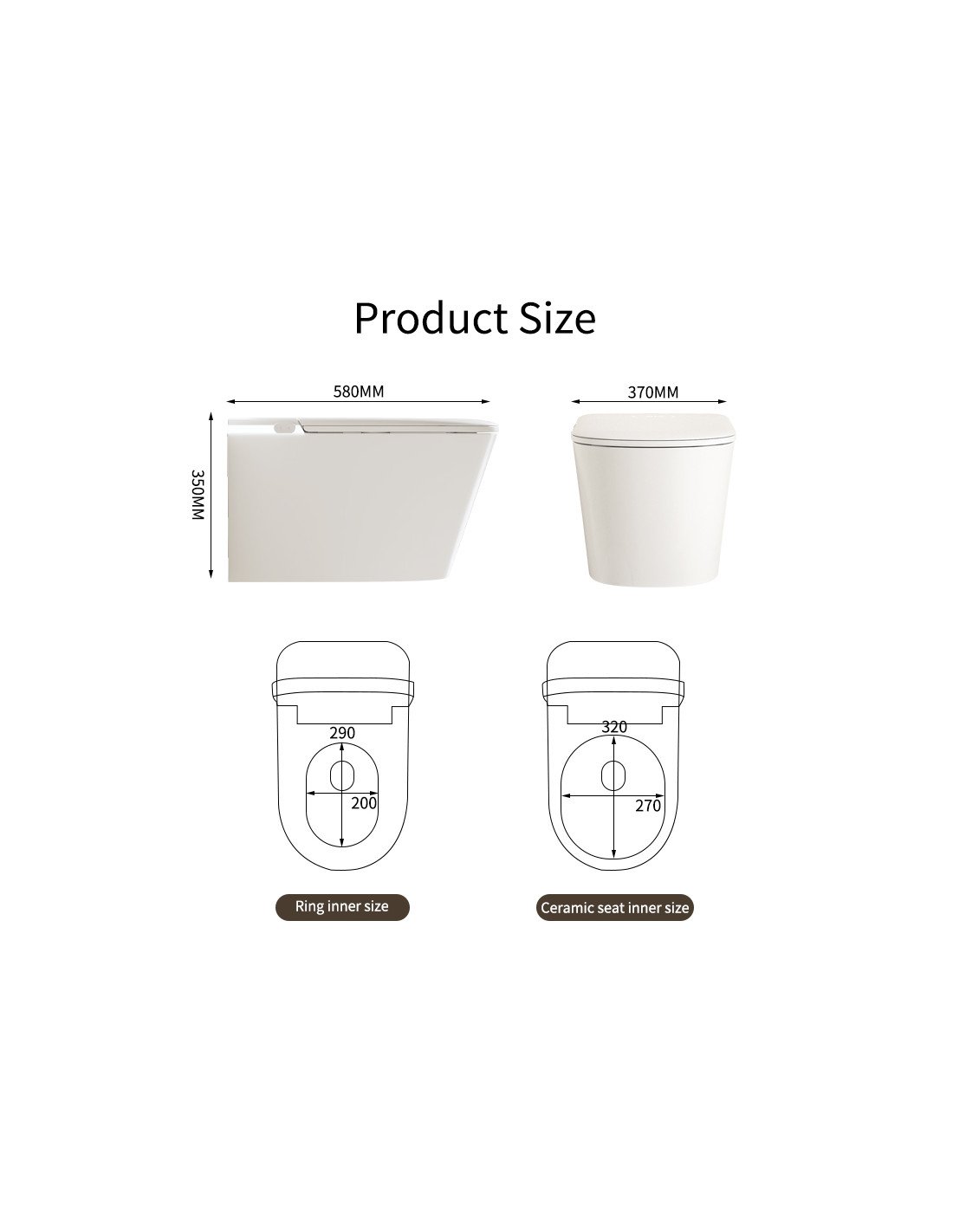

Technical specifications

What's in the box

• Smart toilet (ceramic body with electronics)
• Remote control
• Backup battery
• Foam bottle (with select batches)
• User manual and printed documentation

Installation

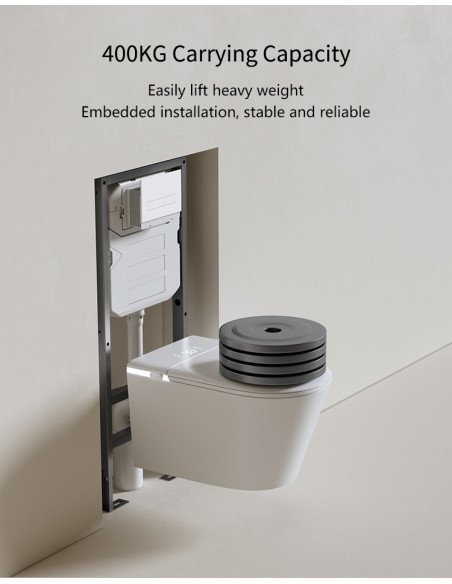

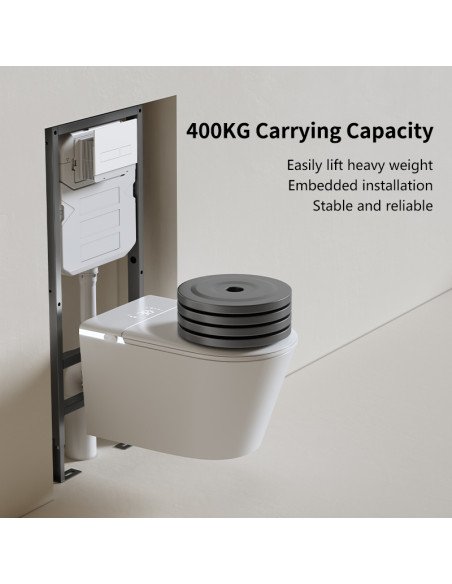

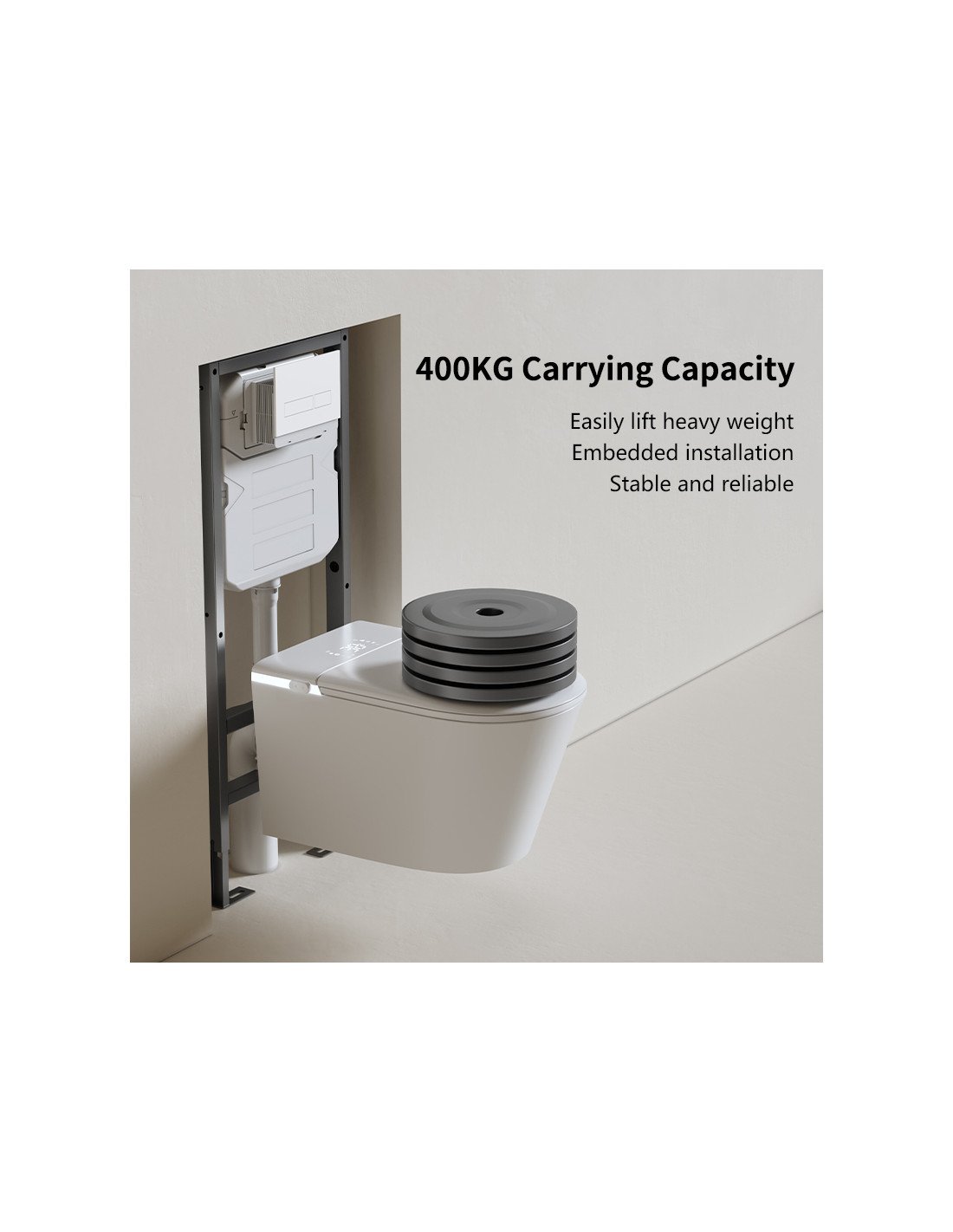

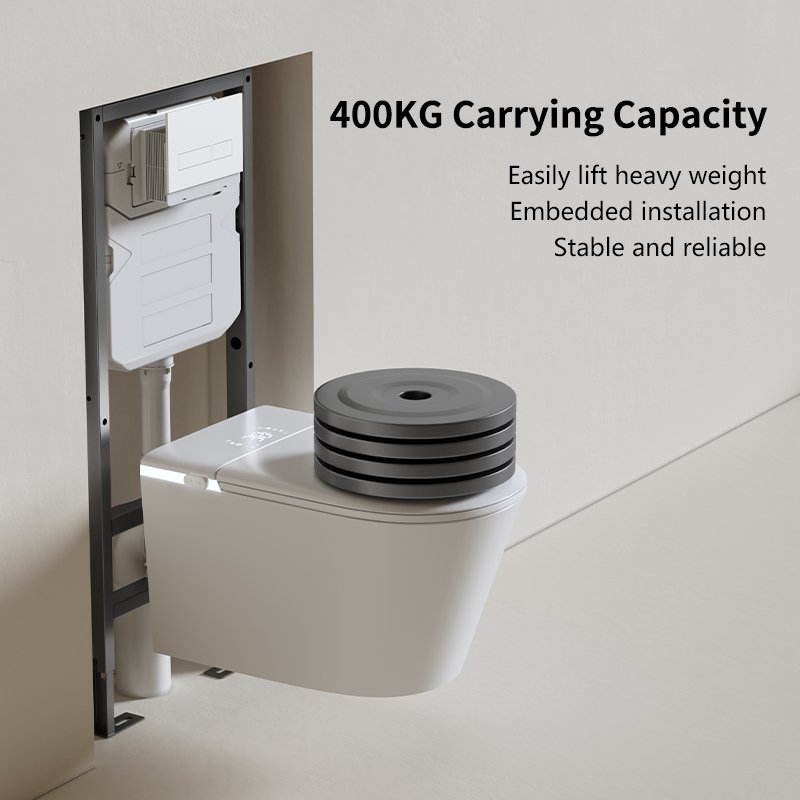

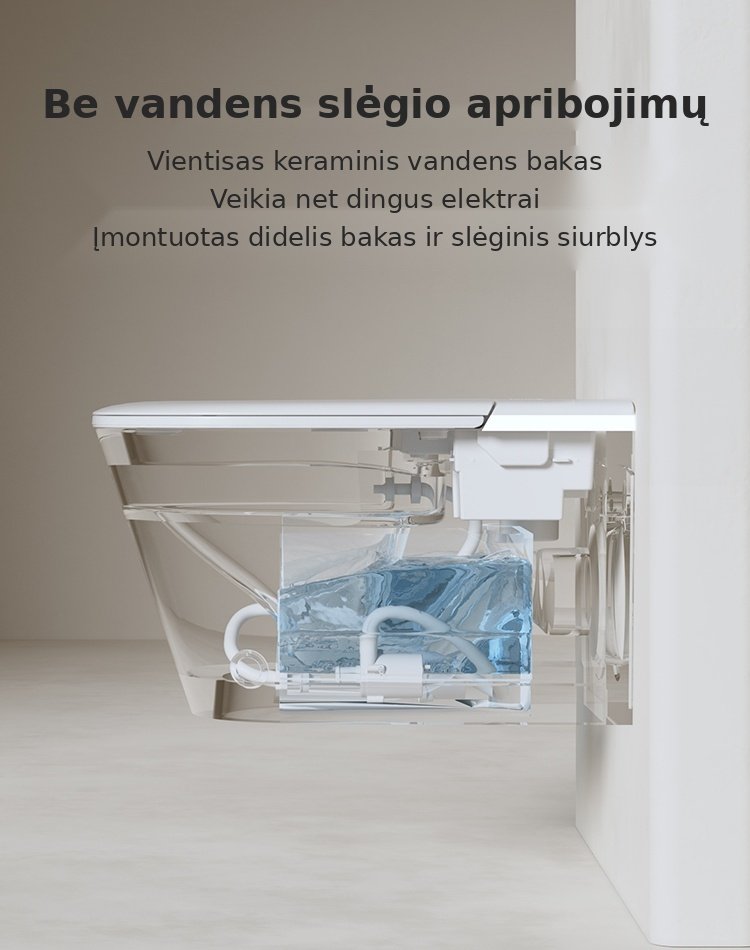

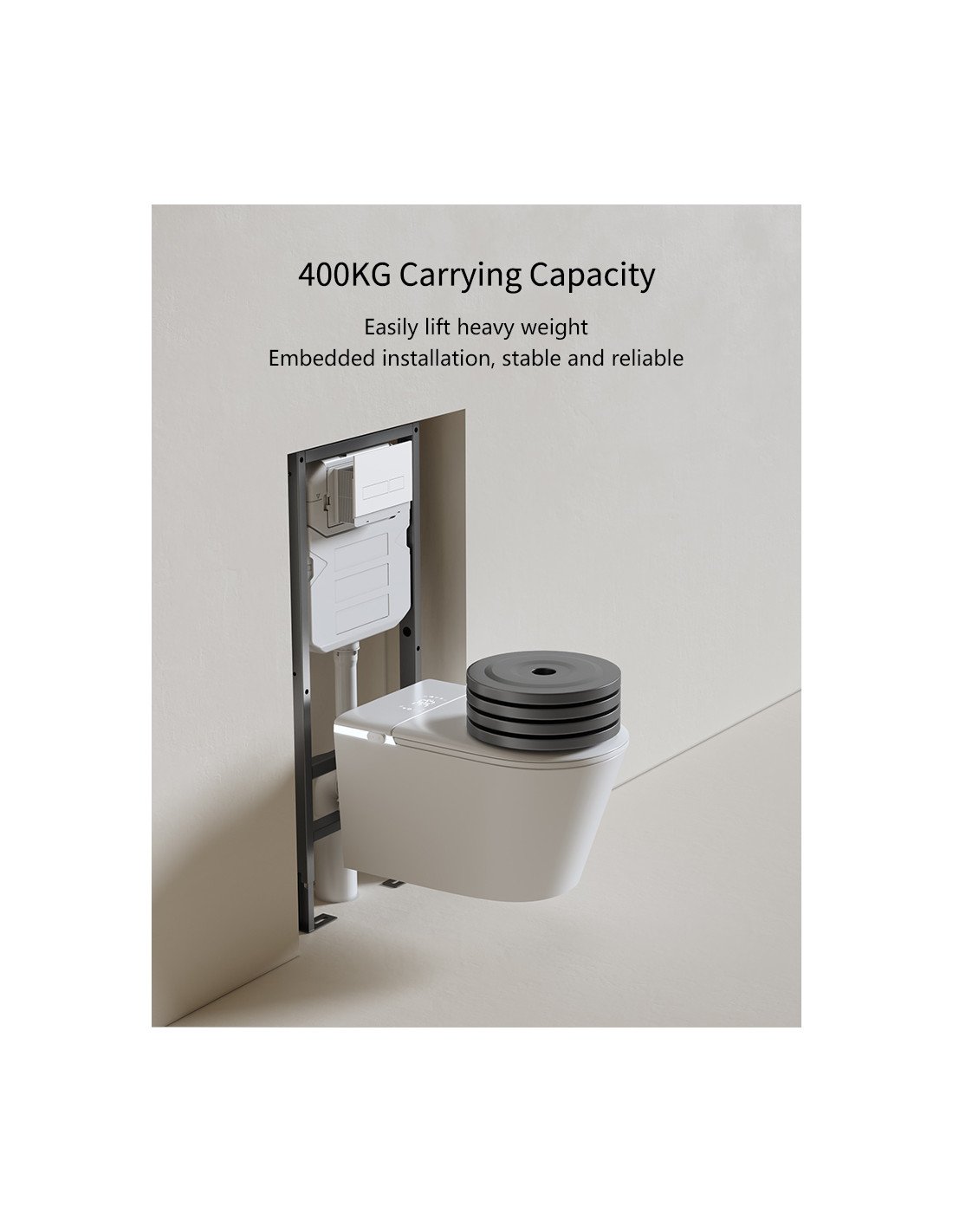

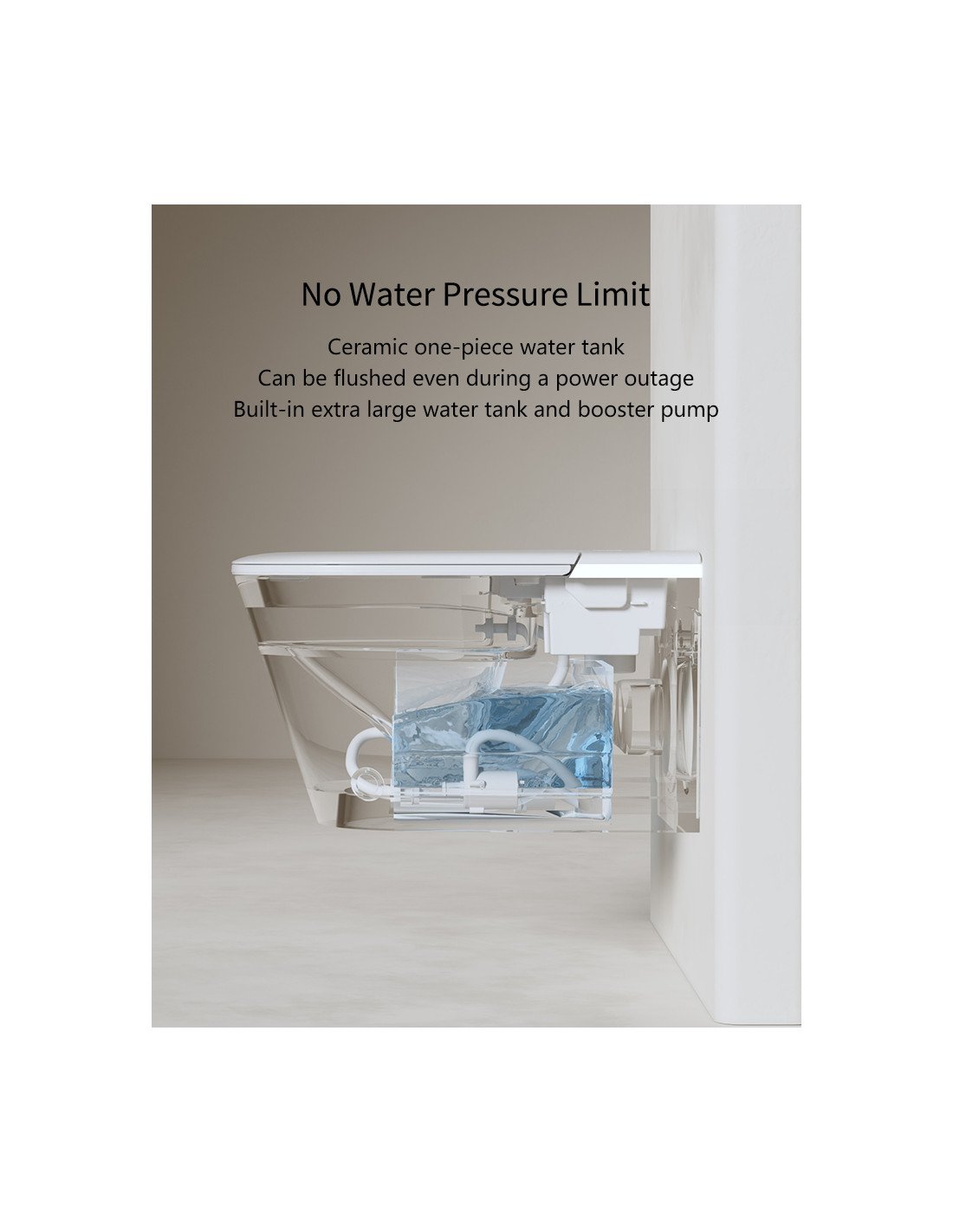

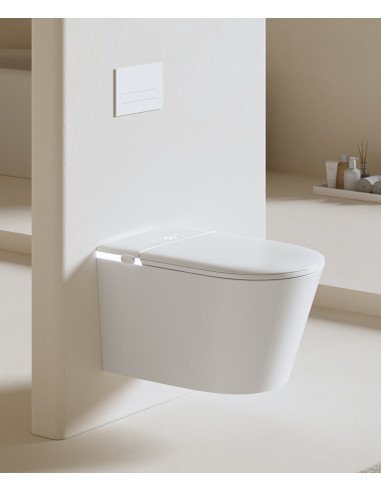

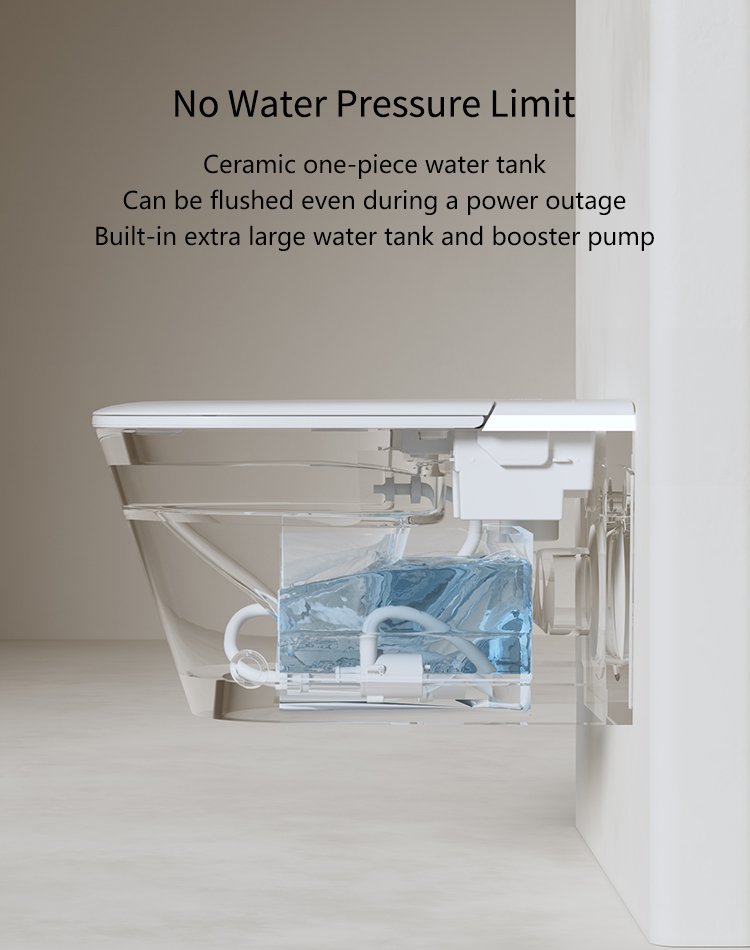

Important: this is a wall-hung toilet mounted on a concealed in-wall frame (frame sold separately). The toilet has an integrated water tank, so the frame is required only as a load-bearing structure — no concealed cistern is needed inside it. Mounting stud spacing is 180 mm (M12) and the waste outlet is Ø90 mm.

The vertical distance from the centre of the waste outlet to the axis of the mounting studs is 100 mm. This is a standard industry dimension matching universal concealed-frame brackets, so the toilet fits most frames available on the market.

Frame positioning: the distance from the back plate of the frame to the finished tile surface must be 320–350 mm: 320 mm for thin-set tiling (tile and adhesive layer no thicker than 20 mm), 350 mm for thick tiles, stone or a wall levelling layer. This dimension is set before the wall is closed up, so that the back of the toilet sits flush against the tiles. The studs protrude 90–110 mm from the wall and are cut to length on site.

Water and power connections: G1/2 water inlet, minimum pressure 0.07 MPa. Supplied with a 1/2 inch inlet hose (60 cm) and a 1/4 inch bidet hose (90 cm). A properly grounded power outlet with RCD protection is required.

Installation must be performed by a qualified plumber in accordance with local electrical and plumbing regulations. Two people are needed to lift and position the toilet.

Warnings

For indoor use only, in dry environments. Water supply temperature must not exceed 35 °C. Drain internal water if there is a risk of freezing. Do not use strong acidic, alkaline, or abrasive cleaners. Children under 8 may use the appliance only under supervision.
