FIT2 H02 Concealed In-Wall Cistern Frame for Wall-Hung Toilets, 1080×510×80 mm, Dual-Flush Plate Included
€159.00
Tax included
FIT2 H02 is a heavy-duty concealed in-wall cistern frame designed for wall-hung toilets. Built around a powder-coated stainless steel chassis, it supports loads up to 400 kg and is compatible with all FIT2 wall-hung toilet bowls.
- Frame size: 1080 × 510 × 80 mm
- Adjustable bolt spacing: 180–230 mm
- Adjustable feet: 0–40 mm
- Dual-flush plate included (3/6 L)
- Suitable for dry-wall and masonry installation
- Standard 400 mm seat height

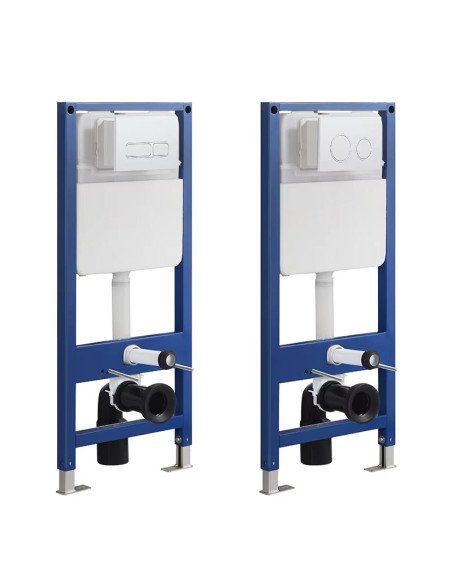

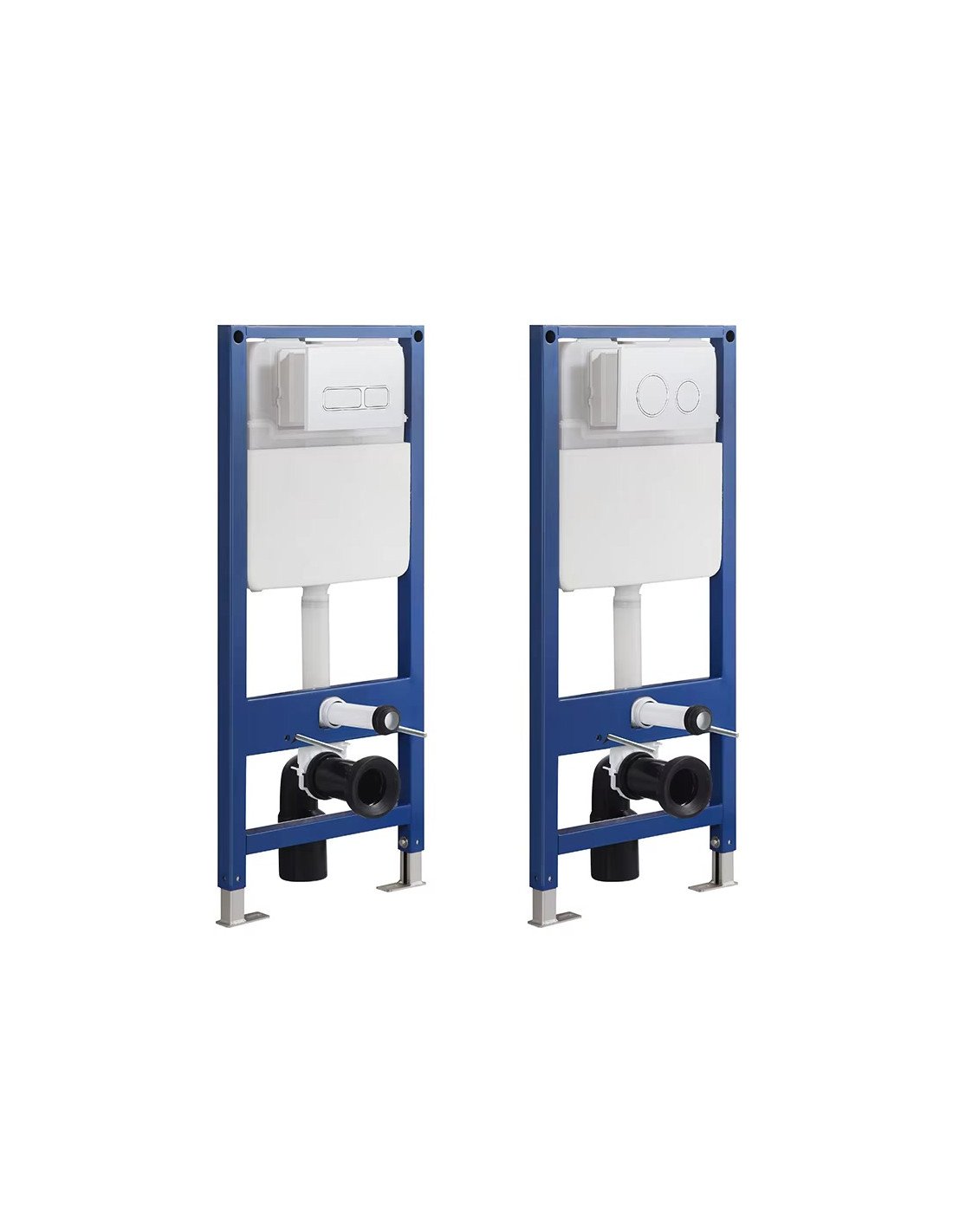

FIT2 H02 Concealed Cistern Frame for Wall-Hung Toilets
The FIT2 H02 is a professional-grade concealed in-wall installation system designed to mount any wall-hung toilet cleanly and securely. The cistern and supporting frame sit hidden behind the wall, leaving only the toilet bowl and the dual-flush actuator plate visible — a modern, minimalist solution that maximises bathroom floor space and simplifies cleaning.
Engineered around a powder-coated stainless steel chassis, the H02 supports a maximum static load of 400 kg, making it suitable for residential and commercial bathrooms alike. It is fully compatible with the entire FIT2 range of wall-hung toilet bowls.
Flexible installation
The frame's adjustable feet (0–40 mm) and surface-depth adjustment (0–200 mm) allow precise positioning on uneven floors and varying wall thicknesses. The standard 1080 mm overall height places the toilet seat at the universal 400 mm finished height. Bolt spacing is adjustable between 180 mm and 230 mm, ensuring compatibility with virtually every standard wall-hung toilet on the market.
Compatible with both dry-wall partitions and solid masonry walls, the H02 can be installed in new builds and renovations alike.
Water-saving dual-flush plate included
A modern dual-flush actuator plate is included in the package — no separate purchase required. The two-button design lets users select a 3-litre half flush or 6-litre full flush, helping reduce household water consumption by up to 50%.

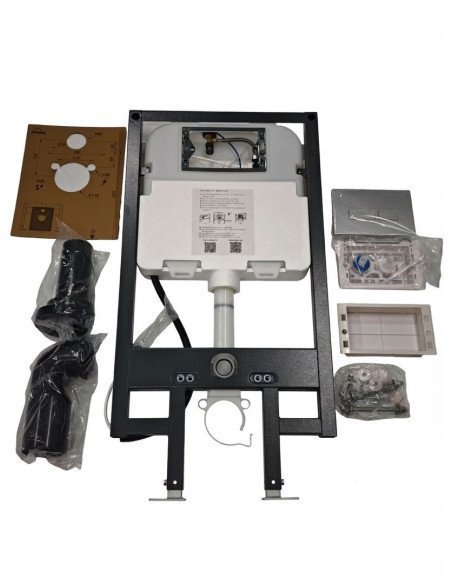

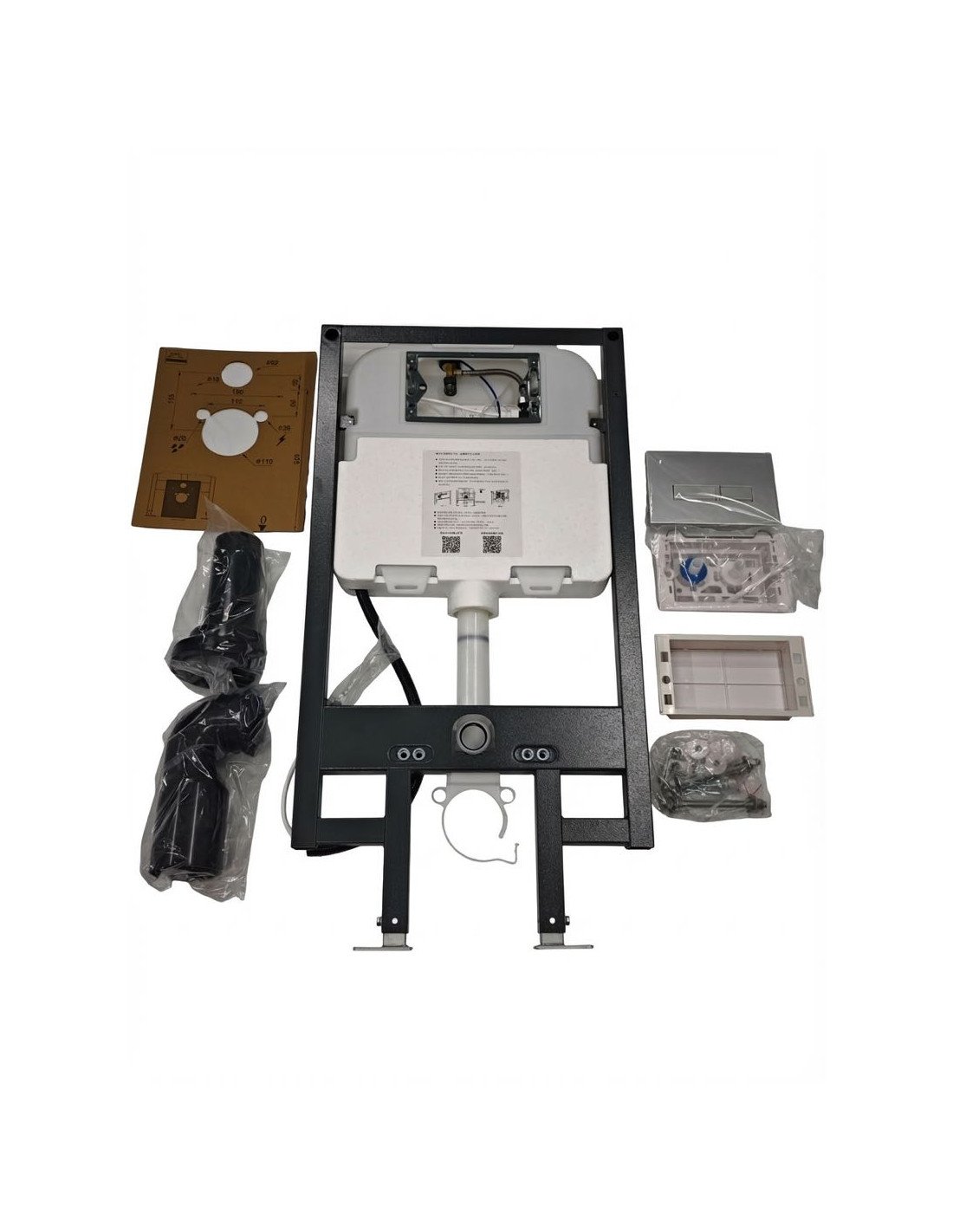

What's in the box
- FIT2 H02 concealed cistern frame with cistern
- Dual-flush actuator plate
- Mounting hardware (threaded rods, anchors, decorative caps)
- Drain elbow and waste connector
- Installation manual

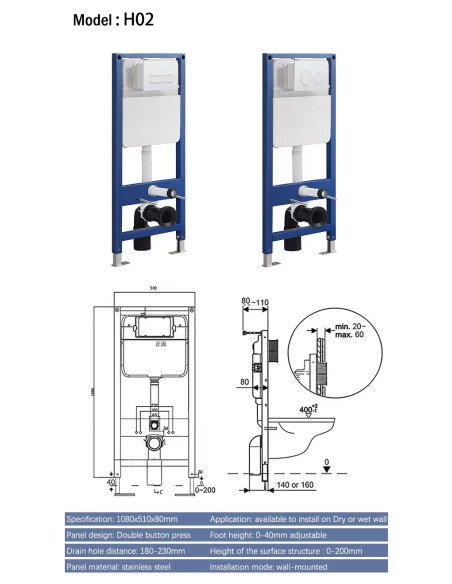

Technical specifications
| Model | FIT2 H02 |
| SKU | FITH02 |
| Type | Concealed in-wall cistern frame |
| Application | Wall-hung toilet bowls |
| Compatibility | All FIT2 wall-hung toilet bowls |

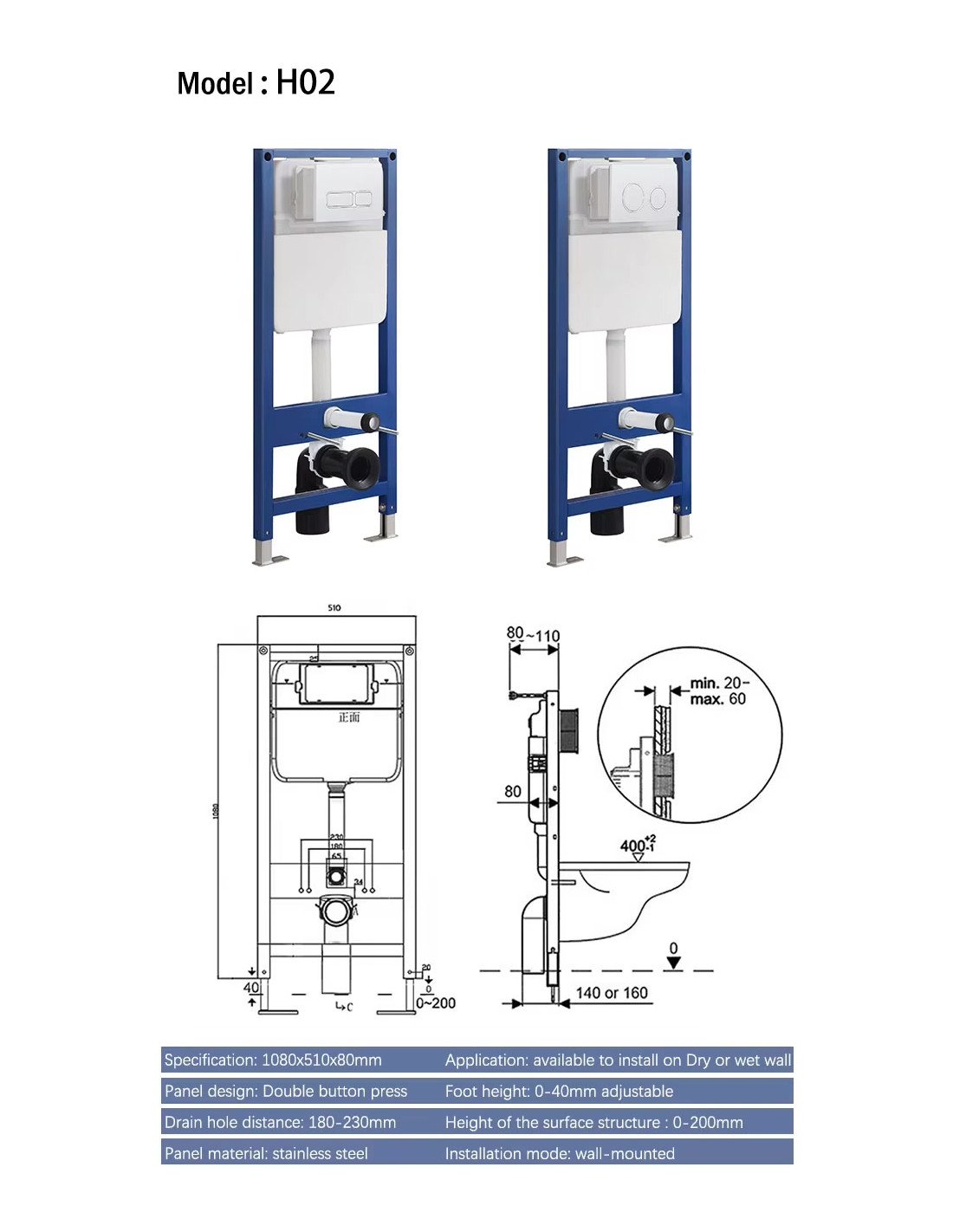

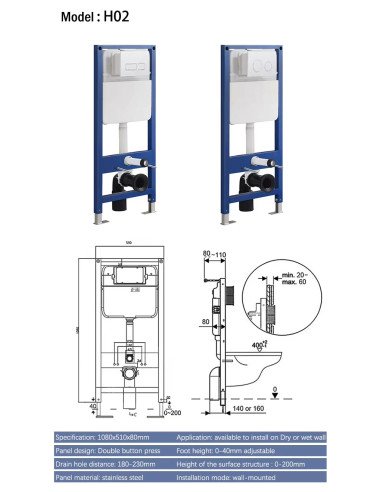

| Frame dimensions (H × W × D) | 1080 × 510 × 80 mm |
| Frame material | Powder-coated stainless steel |
| Maximum load | 400 kg |
| Flush type | Dual-flush (two-button) |
| Cistern capacity | 3/6 L dual-flush |
| Flush plate | Included |
| Bolt spacing (adjustable) | 180–230 mm |
| Adjustable feet | 0–40 mm |
| Wall surface adjustment | 0–200 mm |
| Wall depth range | 80–110 mm |
| Tile thickness range | 20–60 mm |
| Finished seat height | 400 mm (±2 mm) |
| Toilet bowl projection | 140 or 160 mm |

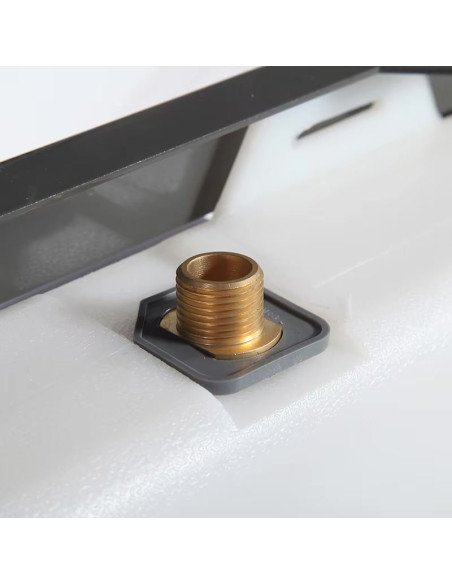

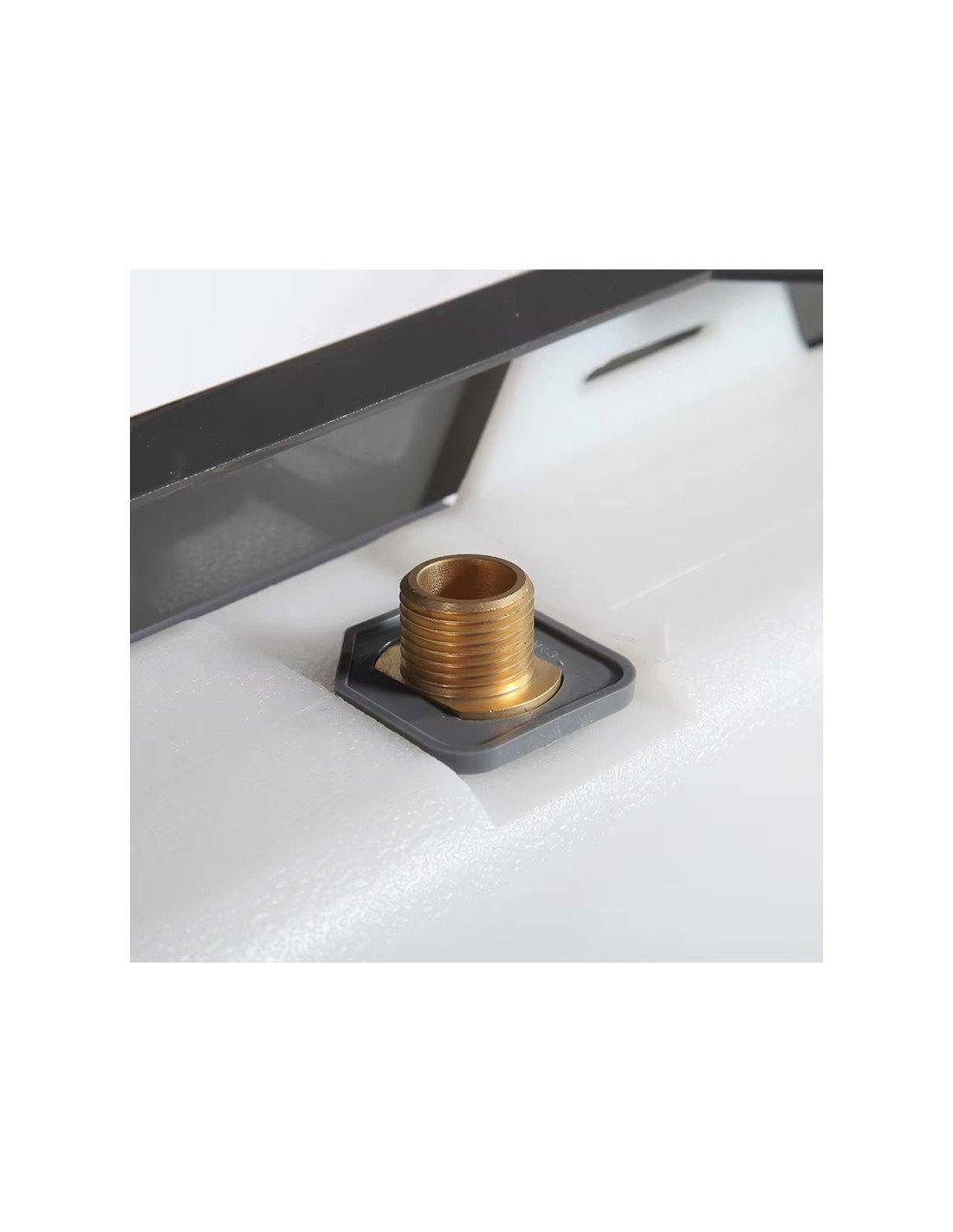

| Water inlet | G1/2" (DN15), side connection |
| Waste outlet | Ø90 mm (Ø110 mm adapter included) |
| Installation type | Wall-mounted, dry-wall or masonry |
| Certification | CE |
| Warranty | 2 years |
FITH02
4779056761192
